The TPS25221DRVT from Texas Instruments is a highly sophisticated integrated circuit designed to enhance the reliability and safety of power management systems. This compact, feature-rich device is an overcurrent protection switch that provides precision current limiting for systems that require a high level of protection and efficiency.

Key Features

• Adjustable Current-Limit Threshold: The device allows users to set the current limit threshold according to their system requirements, ensuring optimal protection for a wide range of applications.
• Fast Response Time: With a swift response to overcurrent conditions, the TPS25221DRVT helps prevent damage to sensitive components, maintaining the integrity and stability of the system.
• Reverse Current Blocking: This feature prevents current from flowing backward through the switch, which is essential for preventing damage to the power source and other circuit components.
• Under-Voltage Lockout (UVLO): The UVLO function ensures that the device operates only when the supply voltage is within an acceptable range, protecting against system undervoltage conditions.
• Thermal Shutdown: The built-in thermal shutdown mechanism protects the device from overheating, enhancing the longevity and safety of the system.

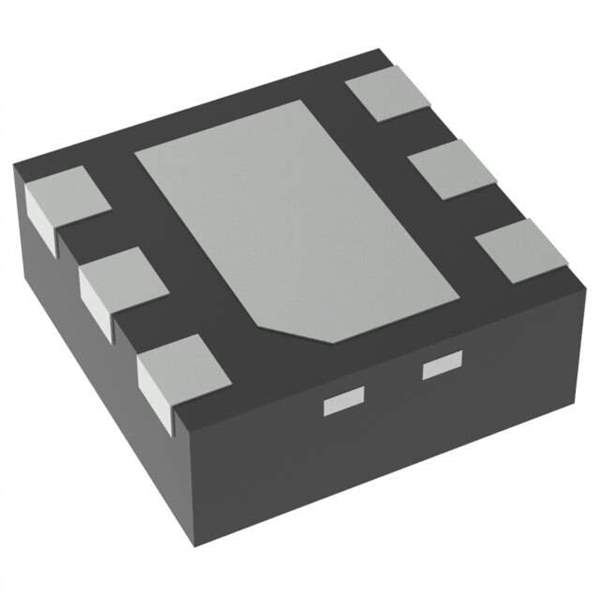

• Compact Size: Housed in a small 6-pin SON package, the TPS25221DRVT saves valuable board space and is suitable for portable and space-constrained applications.

Applications

The TPS25221DRVT is ideal for a variety of applications where precision current limiting is crucial. It is commonly used in:

• USB ports and other power ports
• Industrial controls
• Battery chargers
• Power distribution systems

Quality and Reliability

Texas Instruments is known for their commitment to quality and the TPS25221DRVT is no exception. It is designed to meet the rigorous standards of industrial and commercial applications, ensuring reliable performance under a wide range of conditions.
