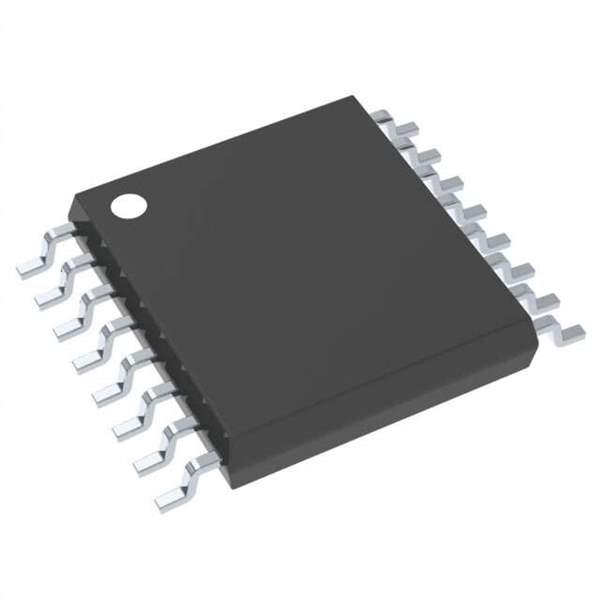

Product Overview: SN74HC138PWT

The SN74HC138PWT is a high-performance integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This device is a 3-to-8 line decoder/demultiplexer, which is part of the 74HC series, known for its high-speed CMOS technology. The SN74HC138PWT is specifically crafted to facilitate the hardware design of digital systems by offering an efficient way to decode and demultiplex signals, making it an essential component in a wide range of applications such as computer systems, robotics, and consumer electronics.

Key Features:

• Logic Type: The SN74HC138PWT operates as a 3-line to 8-line decoder or a 1-line to 8-line demultiplexer, providing versatile functionality in digital circuits.
• High-Speed CMOS Technology: This device is built using CMOS technology that ensures low power consumption while maintaining high-speed operation.
• Wide Operating Voltage Range: It supports a broad range of operating voltages from 2V to 6V, making it compatible with various logic levels and systems.
• Output Drive Capability: The SN74HC138PWT can drive up to 10 LSTTL loads, which allows for significant flexibility in interfacing with other digital logic families.
• Multiple Package Options: Available in a TSSOP (Thin Shrink Small Outline Package) form, it is suitable for space-constrained applications requiring a small footprint.
• Low Power Consumption: It features a low power consumption characteristic of CMOS devices, which is crucial for battery-operated and energy-efficient designs.

Applications:

The SN74HC138PWT is widely used in digital systems where decoding and demultiplexing are necessary. It finds applications in:

• Memory decoding or data routing to various parts of a system
• Control systems for industrial automation
• Peripheral selection in microprocessor-based systems
• Address decoding for memory and input/output mapping
• Electronic toys and gaming consoles

Quality and Reliability:

Texas Instruments is renowned for its commitment to quality, and the SN74HC138PWT is no exception. It is designed to meet the rigorous standards of the industry, ensuring high reliability and performance in even the most demanding conditions. The device is also RoHS compliant, adhering to environmental standards and regulations.

For detailed specifications and application notes, designers and engineers are encouraged to consult the official Texas Instruments datasheets and product guides for the SN74HC138PWT.
