The MCP4726A0T-E/CH is a high-precision, compact 12-bit Digital-to-Analog Converter (DAC) module from Microchip Technology, designed to deliver a reliable and flexible solution for a wide range of applications requiring digital to analog signal conversion. This device is particularly well-suited for applications in the industrial, automotive, and consumer electronics sectors, where accurate analog signal generation is crucial.

Key Features:

• 12-Bit Resolution: The MCP4726A0T-E/CH offers fine-grain resolution, ensuring that the analog output signal closely matches the intended output, providing high fidelity in signal replication.
• Integrated EEPROM: With its onboard memory, the DAC can store configuration settings and the DAC input code, which enables the device to retain the last output state upon power-up, reducing initialization time and complexity.
• Single-Supply Operation: This device operates from a single 2.7V to 5.5V power supply, making it versatile for use in various circuit designs and compatible with most microcontrollers.
• I2C Interface: The integrated I2C-compatible serial interface allows for easy communication with a host microcontroller, supporting both standard (100 kbps) and fast (400 kbps) I2C modes for flexible data transfer rates.
• High Output Drive Capability: The MCP4726A0T-E/CH can source or sink up to 25 mA of current, allowing it to drive larger loads without the need for an external amplifier in many cases.

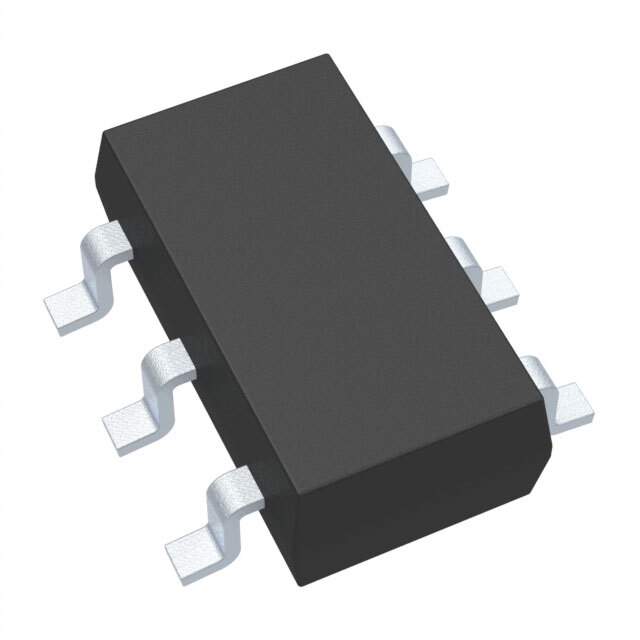

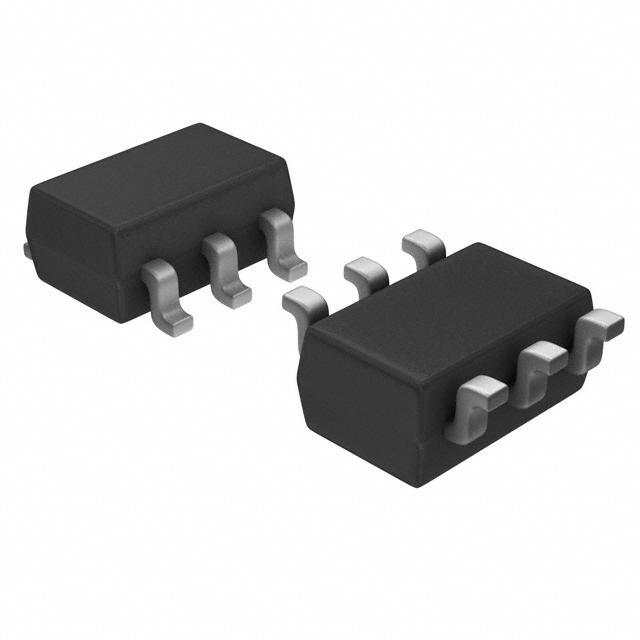

• Small Form Factor: The device comes in a small SOT-23-6 package, which is ideal for space-constrained applications.

Applications:

The MCP4726A0T-E/CH is suitable for a diverse set of applications that require precise analog output. This includes:

• Automated Calibration Systems
• Programmable Voltage and Current Sources
• Portable Instrumentation
• Motor Control and Servo Systems
• Consumer Electronics

Microchip Technology's commitment to quality and performance is evident in the MCP4726A0T-E/CH DAC, making it a reliable choice for professionals looking to integrate digital-to-analog conversion functionality into their designs.
