Maxim Integrated MAX1678EUA+T Step-Up DC-DC Converter

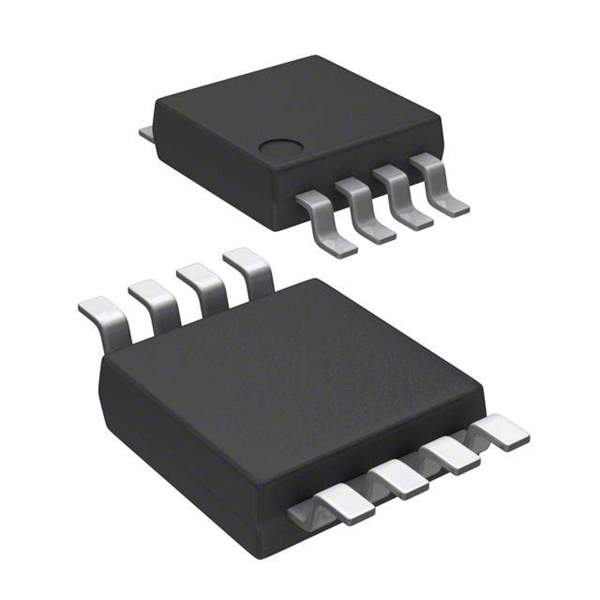

The MAX1678EUA+T from Maxim Integrated is a high-efficiency, compact, step-up DC-DC converter designed for a variety of applications. This versatile component is capable of boosting input voltages as low as 0.7V to output voltages ranging from 2.7V to 5.5V, making it an ideal solution for battery-powered devices, including those operating on a single cell. The MAX1678EUA+T is available in a space-saving 8-pin µMAX package, which is highly beneficial for designs where board space is at a premium.

One of the standout features of the MAX1678EUA+T is its high efficiency, which can reach up to 96%. This is achieved through an advanced synchronous-rectification scheme and a low quiescent current. These characteristics ensure extended battery life and reduced heat generation, which are critical in portable and wearable technology. The device also supports a shutdown mode that reduces the quiescent current to a mere 0.1µA, further conserving power when the device is not in active use.

The MAX1678EUA+T operates with a switching frequency of 600kHz, which allows the use of small, low-cost inductors and capacitors, thereby reducing the overall solution size and cost. Additionally, it includes a current-limited, pulse-frequency-modulated (PFM) control scheme that provides a low-noise operation, making it suitable for noise-sensitive applications such as RF devices.

Built with safety in mind, the MAX1678EUA+T incorporates features such as over-temperature protection and a soft-start function to minimize inrush current during startup, thereby preventing potential damage to the converter and the load. Its robust design ensures reliable operation even under varying conditions, which is critical for mission-critical applications.

In summary, the Maxim Integrated MAX1678EUA+T is a highly efficient, space-saving step-up DC-DC converter that is well-suited for portable electronics, medical devices, and any other applications where battery life and board space are of concern. Its low start-up voltage, high efficiency, and comprehensive protection features make it an excellent choice for designers looking to optimize their power management solutions.
