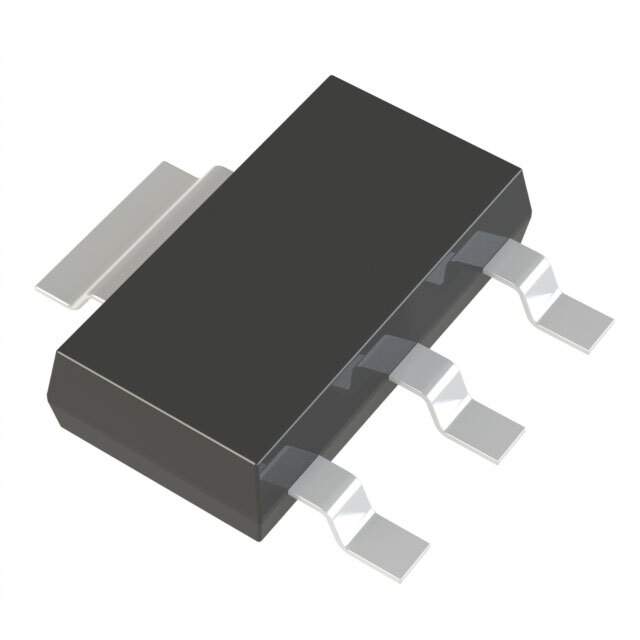

Product Overview: ZLDO1117G33TA - Diodes Incorporated

The ZLDO1117G33TA is a high-performance, low-dropout linear voltage regulator designed and manufactured by Diodes Incorporated, a leading supplier in the semiconductor market. This regulator is specifically designed to deliver a fixed output voltage of 3.3V with an input voltage range from 2.7V to 7V, making it an ideal choice for a wide range of applications that require a stable and reliable power supply.

With its ability to provide up to 1A of output current, the ZLDO1117G33TA is well-suited for powering complex circuits in consumer electronics, industrial automation, and telecommunication systems. Its low dropout voltage ensures efficient operation even when the input voltage is close to the output voltage, thereby reducing power loss and improving overall system efficiency.

The device is housed in a TO-252 (DPAK) package, which not only offers a compact footprint for space-constrained applications but also provides excellent thermal performance. This packaging allows for efficient heat dissipation, ensuring that the device operates within its specified temperature range even under high load conditions.

One of the key features of the ZLDO1117G33TA is its built-in current limiting and thermal shutdown protection. These safety mechanisms protect the device and the application from damage due to over-current conditions or excessive heat. Additionally, the regulator offers low-noise operation, which is critical for applications where noise can affect performance, such as precision instrumentation and audio devices.

The ZLDO1117G33TA is also characterized by its excellent line and load regulation, ensuring a stable output voltage despite variations in input voltage or load current. This makes it a reliable choice for sensitive electronic applications where voltage stability is paramount.

In summary, the ZLDO1117G33TA from Diodes Incorporated is a robust, efficient, and reliable voltage regulator that provides a fixed 3.3V output with high accuracy. Its compact form factor, thermal efficiency, and protection features make it an excellent choice for designers looking for a dependable power management solution.
