Overview of PAM2804AAB010 LED Driver

The PAM2804AAB010 is a high-efficiency, constant current LED driver designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This driver is specifically engineered to meet the needs of portable and battery-powered applications where efficient power conversion is critical.

Key Features

• High Efficiency: The PAM2804AAB010 boasts an impressive efficiency rating, making it ideal for prolonging battery life in portable devices.
• Adjustable Output Current: It allows for precise control over the LED current, which can be set via an external resistor. This flexibility supports a range of LED brightness levels and ensures compatibility with various LED configurations.
• Wide Input Voltage Range: The device operates over a broad input voltage range, accommodating various power sources and ensuring consistent LED performance.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, enhancing the longevity and reliability of both the LED driver and the LEDs it powers.

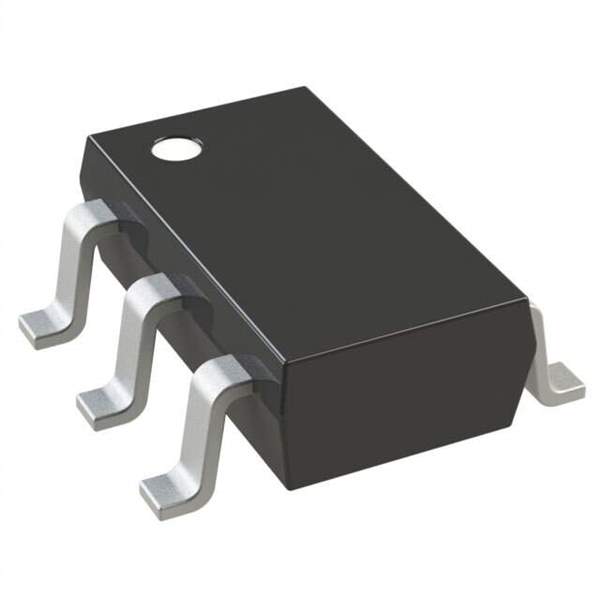

• Compact Package: Available in a small form factor, the PAM2804AAB010 is suitable for space-constrained applications.

Applications

The PAM2804AAB010 is versatile and can be used in a variety of lighting applications. Its efficiency and compact size make it particularly well-suited for:

• Portable lighting
• Battery-powered devices
• Handheld electronics
• LED backlighting for LCD displays

Technical Specifications

The device features a typical output current accuracy of ±5%, ensuring consistent illumination. Its switching frequency is optimized to balance efficiency and component size. The PAM2804AAB010 also includes under-voltage lockout (UVLO), over-current protection (OCP), and a soft-start function to minimize inrush current during startup.

Conclusion

With its high efficiency, adjustable output current, and comprehensive protection features, the PAM2804AAB010 from Diodes Incorporated is an excellent choice for designers looking to enhance the performance and reliability of their LED lighting solutions.
