Overview

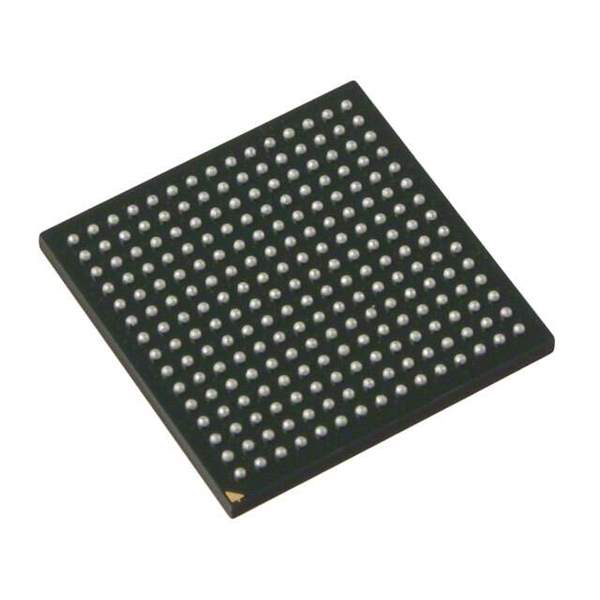

The XC6SLX16-3CSG225C is a member of the Xilinx Spartan-6 FPGA family, designed for cost-sensitive, low- to mid-density logic applications. As a field-programmable gate array, it provides a flexible digital logic fabric that can be configured to implement custom processors, high-speed interfaces, control logic, and signal-processing functions. Devices in this family typically operate from a low core voltage with separate I/O banks supporting a range of I/O standards and moderate-speed serial and parallel interfaces. The CSG225 suffix denotes a fine-pitch, chip-scale BGA package with 225 balls, suitable for compact, high-density PCB designs. The “-3” speed grade indicates a higher performance variant within the family, and the “C” temperature code targets commercial operating temperature ranges. Spartan-6 is a mature generation of Xilinx FPGAs and many variants are NRND (Not Recommended for New Designs), so availability and lifecycle status should be verified during design planning.

Applications

• Embedded control and monitoring systems requiring customizable digital logic and moderate processing performance
• Industrial automation, motor control, and machine interface solutions with mixed legacy and modern I/O standards
• Communications and networking equipment implementing custom protocol bridging, packet processing, or glue logic
• Consumer and professional audio/video equipment for timing control, data formatting, or simple video processing pipelines
• Test and measurement instruments needing precise timing, triggering, and digital pattern generation or capture
• Educational and prototyping platforms for FPGA-based algorithm development and hardware acceleration

Alternatives & Replacement

Depending on stock, lead time, and lifecycle status, designers may need to consider alternative FPGAs or CPLDs with similar logic density, I/O count, and performance. Substitution must take into account not only logic resources but also package, configuration method, power rails, I/O standards, and available development tools.

Recommended alternatives:

• AT6010HLV-4QC – Microchip Technology (Redesign Required)
• LCMXO2-2000ZE-1UWG49ITR – Lattice Semiconductor (Redesign Required)
• LCMXO3L-1300E-5UWG36CTR – Lattice Semiconductor (Redesign Required)
• ICE65L01F-LQN84C – Lattice Semiconductor (Redesign Required)
• 10M02SCU169C8G – Intel (Redesign Required)
• XC3S250E-5VQ100C – Xilinx Inc. (Redesign Required)
• XC7S25-2CSGA225C – Xilinx Inc. (Redesign Required)
• XC3S50A-4VQG100I – Xilinx Inc. (Redesign Required)
• XC6SLX25T-2CSG324C – Xilinx Inc. (Redesign Required)
• LFEC3E-3F256C – Lattice Semiconductor (Redesign Required)

Engineering note: All candidates above are not drop-in replacements. Before committing to a substitute, carefully compare the datasheets for package dimensions and pinout, power supply requirements, configuration and clocking schemes, I/O voltage and standards support, timing characteristics, and available logic and memory resources. In many cases, migrating to an alternative FPGA will require PCB layout changes, firmware/bitstream redesign, and revalidation of signal integrity and timing.
