Overview

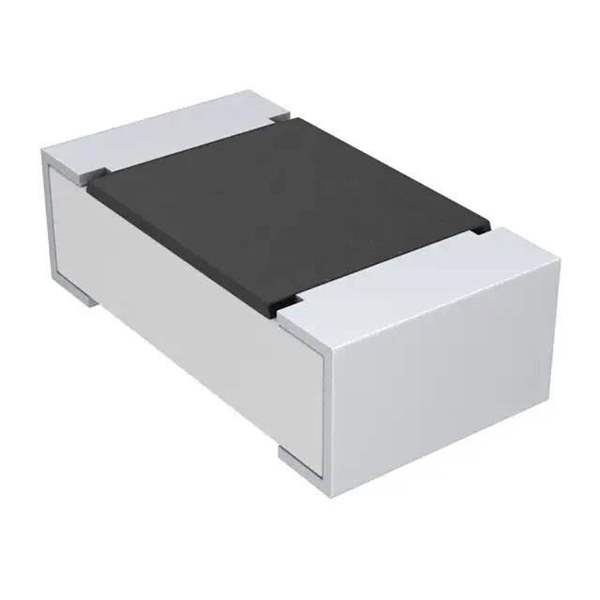

The Vishay CRCW06034K70FKEA is a surface-mount thick film chip resistor designed for general-purpose use in electronic circuits. It comes in the popular 0603 (1608 metric) chip package, optimized for automated pick-and-place assembly and reflow soldering. With a nominal resistance of 4.7 kΩ and a fixed tolerance (F series, typically 1%), this resistor is suited for signal conditioning, bias networks, pull-up or pull-down functions, and general voltage/current limiting. The CRCW series is known for stable performance, good reliability, and compatibility with a wide range of commercial and industrial electronics. Exact power rating and voltage details should be confirmed from the Vishay datasheet for the specific sub-series and suffix.

Applications

• General-purpose signal conditioning and biasing in consumer and industrial electronics
• Pull-up and pull-down networks in microcontroller, logic, and communication interfaces
• Analog front-end circuits in measurement, sensing, and data acquisition systems
• Power management and voltage divider networks in DC/DC converters and regulators
• Control and feedback loops in motor drives, HVAC controllers, and automation equipment
• LED driver, instrumentation, and test equipment where compact SMD resistors are required

Alternatives & Replacement

Depending on availability, lifecycle status, cost targets, or specific electrical requirements (power rating, tolerance, temperature coefficient), designers may consider alternative SMD resistors with similar resistance value, package size, and performance characteristics.

Recommended alternatives:

• Panasonic ERJ-2RKF3012X – needs redesign review (different electrical match and/or conditions)
• Yageo RC0603FR-07390RL – 0603 SMD resistor, redesign required
• Yageo AC0603JR-074K7L – 4.7 kΩ class thick film resistor, redesign required
• Walsin Technology WR06X2701FTL – 0603 resistor, check resistance and ratings
• Stackpole RMCF0402FT2K55 – different package (0402), board redesign likely
• Vishay CRCW0402100KFKED – same family, different size and value, redesign required

Engineering note: always verify any proposed replacement against the original design requirements, including package and land pattern, resistance value and tolerance, power rating, maximum working voltage, temperature coefficient, and environmental/derating conditions. A footprint or package mismatch (for example 0603 vs 0402 or 0805), or differences in power/voltage ratings, can require PCB layout changes and full revalidation of the circuit’s performance and reliability.
