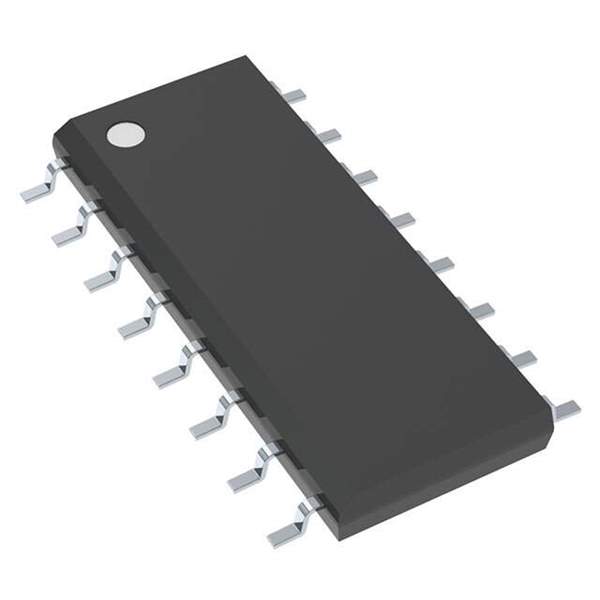

Product Overview: ULQ2003ADG4 from Texas Instruments

The ULQ2003ADG4 is a high-voltage, high-current Darlington transistor array designed by Texas Instruments to cater to a wide range of applications, including relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. This integrated circuit enhances the functionality of any project by providing an easy way to drive higher current loads with lower current control signals.

Key Features

• High-Voltage Outputs: The ULQ2003ADG4 can handle output voltages up to 50V, making it suitable for driving a variety of loads in different applications.
• High-Current Capability: Each of the seven Darlington pairs can deliver 500 mA, which means the chip can drive medium to high current loads with ease.
• Integrated Suppression Diodes: The inclusion of suppression diodes for inductive loads ensures that the device can safely drive relays and other inductive components without the risk of damaging voltage spikes.
• Output Clamp Diodes: Inputs and outputs are equipped with clamp diodes that protect the device from momentary high-voltage excursions, enhancing its reliability in demanding applications.
• Wide Operating Temperature Range: The device can operate over a temperature range of -40°C to 85°C, ensuring stability and performance under varied environmental conditions.

Applications

The ULQ2003ADG4 is versatile and can be used in a myriad of applications. Its ability to interface with TTL and 5V CMOS logic makes it particularly useful in projects that require interfacing with microcontrollers or other logic devices. Whether you're building a robotic arm that requires multiple relay controls or designing an LED display that needs consistent current control, the ULQ2003ADG4 provides an efficient solution.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the ULQ2003ADG4 is no exception. With its robust design and built-in protection features, this Darlington transistor array is built to last. Whether you're a hobbyist working on a DIY project or an engineer designing a commercial product, the ULQ2003ADG4 offers the performance and reliability you need.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or consult the ULQ2003ADG4 datasheet.
