Product Overview: SN75176BDRE4 from Texas Instruments

The SN75176BDRE4 is a robust, high-performance differential bus transceiver from the industry-leading semiconductor manufacturer, Texas Instruments. This device is designed to facilitate bidirectional communication on balanced lines and is compliant with the RS-485 and RS-422 standards, making it an ideal component for serial data transmission over long distances and in noisy environments.

The SN75176BDRE4 features a differential line driver and a differential input receiver. Its driver outputs and receiver inputs are connected internally to form a bus port suitable for half-duplex (two-wire) communication. This versatile transceiver is capable of operating at speeds of up to 10 Mbps, with a wide supply voltage range of 4.75V to 5.25V, which allows it to be used in a variety of systems without the need for additional voltage regulation.

One of the key attributes of the SN75176BDRE4 is its thermal shutdown protection, which ensures that the device remains operational and protected even under conditions that could lead to excessive power dissipation. Additionally, the transceiver comes with driver short-circuit current limiting and receiver input impedance, which allow it to withstand up to ±12V outside common-mode voltage range, further enhancing its robustness and reliability.

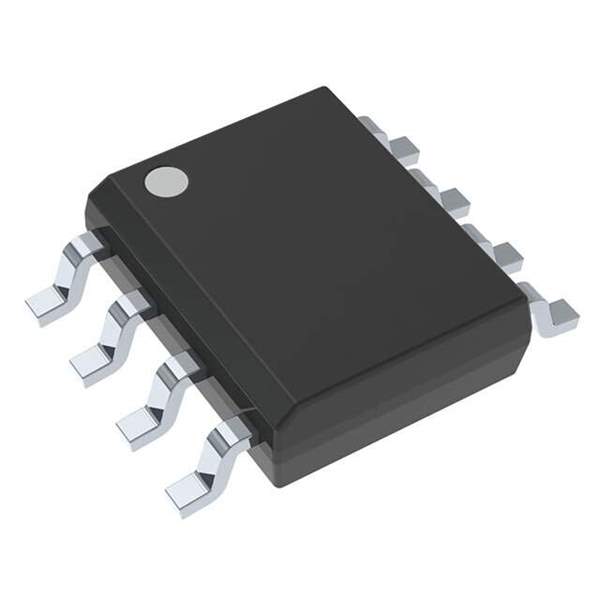

The device is available in a compact 8-pin SOIC (Small Outline Integrated Circuit) package, making it easy to integrate into various electronic assemblies without occupying excessive board space. This package type also supports automated surface-mount assembly processes, facilitating efficient manufacturing and scalability.

Engineers and designers will appreciate the fail-safe receiver feature, which ensures a logic-high output if the input is open circuit, short-circuited, or idle (disconnected from a bus), providing a level of safety and predictability in system design.

With its combination of high-speed data transmission, robust protection features, and compact form factor, the SN75176BDRE4 from Texas Instruments is a reliable choice for applications requiring efficient and secure data communication, such as industrial control systems, networked devices, and telecommunications infrastructure.
