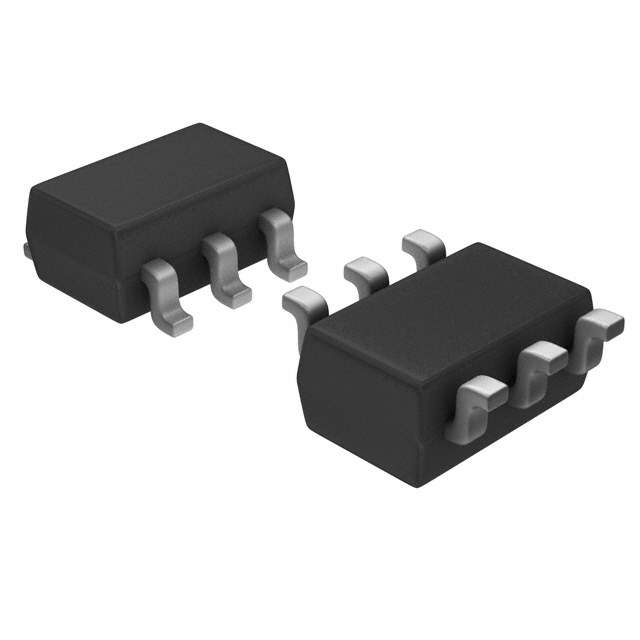

The SN74LVC2G17DBVT from Texas Instruments is a high-performance, dual Schmitt-trigger buffer that is designed to ensure signal integrity through its hysteresis characteristic. This integrated circuit is part of the LVC family, which stands for Low-Voltage CMOS, indicating its low power consumption and high-speed operation capabilities.

Key Features

• Logic Type: Schmitt Trigger Buffer
• Number of Channels: 2 Channels
• Input Type: Schmitt Trigger
• Output Type: Push-Pull
• Supply Voltage Range: 1.65V to 5.5V
• Operating Temperature Range: -40°C to +125°C
• Mounting Type: Surface Mount
• Package / Case: SOT-23-6
• Logic Family: LVC

Performance and Applications

The SN74LVC2G17DBVT is optimized for use in systems where signal integrity is paramount. Its Schmitt-trigger inputs provide a higher noise threshold, making it ideal for transforming noisy inputs into clean digital signals. This makes the device particularly well-suited for applications such as:

• Wave shaping
• Signal conditioning
• Line driving
• Glitch removal

Furthermore, with its wide operating voltage range, the SN74LVC2G17DBVT can be used in mixed-voltage system environments and is compatible with 5V, 3.3V, and lower voltage logic levels. This versatility, combined with its small SOT-23-6 package, makes it an excellent choice for space-constrained applications.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the SN74LVC2G17DBVT is no exception. It is designed to meet the stringent requirements of the industrial and commercial markets, ensuring performance and durability in a wide range of operating conditions.

Whether you are designing consumer electronics, industrial control systems, or communication infrastructure, the SN74LVC2G17DBVT offers a reliable solution for your digital signal buffering needs.
