Overview of Texas Instruments LM358BIDR

The Texas Instruments LM358BIDR is a versatile dual operational amplifier (op-amp) designed for standard analog applications. This integrated circuit is part of the LM358 series, known for its cost-effectiveness and functional reliability. The LM358BIDR is widely used in various electronic devices due to its ability to operate from a single power supply over a wide range of voltages.

Key Features

• Dual Op-Amp Configuration: The device includes two independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single power supply.
• Wide Supply Range: It can be powered by a supply voltage ranging from 3V to 32V for single supply operation, or ±1.5V to ±16V for dual supply configurations, making it highly versatile for various applications.
• Low Supply Current: The LM358BIDR boasts a low supply current, which is ideal for battery-powered devices and helps in reducing overall power consumption.
• Common-Mode Input Voltage Range: It includes a common-mode input voltage range that extends to ground, allowing direct sensing near the ground.
• Differential Input Voltage Range: Equal to the power supply voltage, this feature facilitates a wide range of input signals.

Applications

The LM358BIDR is suitable for various applications, including:

• Transducer amplifiers
• DC gain blocks
• All the conventional op-amp circuits
• Battery-powered devices
• Power supply control and protection

Package and Quality

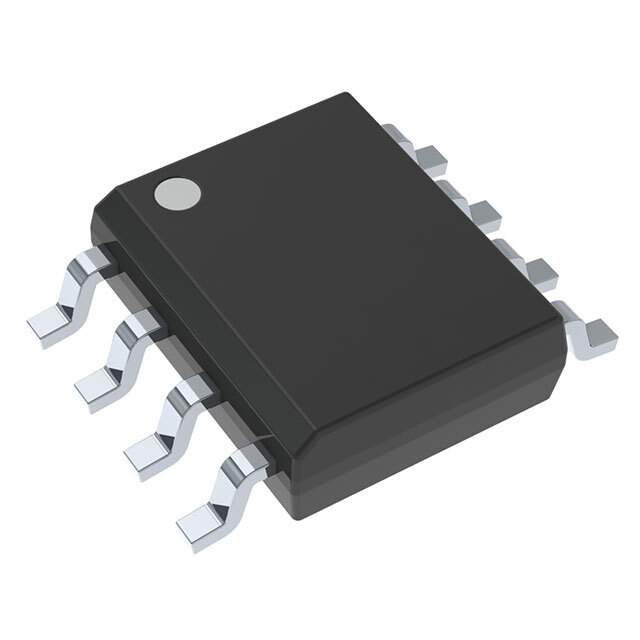

The LM358BIDR comes in an SOIC-8 (Small Outline Integrated Circuit) package, which is ideal for space-constrained applications. The device is also characterized for operation from 0°C to 70°C, ensuring reliable performance across a range of environmental conditions.

With its combination of features, the LM358BIDR from Texas Instruments is a practical choice for designers looking for a general-purpose op-amp with a balance of performance, power efficiency, and cost.
