Overview

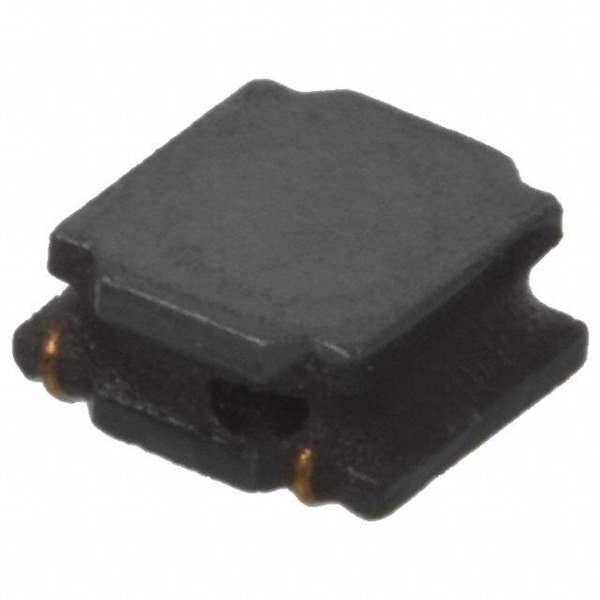

The NR3015T2R2M from Taiyo Yuden is a fixed surface-mount power inductor designed for use in DC-DC converters, power filtering, and general energy storage applications. Belonging to the NR series, it is typically used in compact switching regulators and POL (point-of-load) supplies where stable inductance, low DC resistance, and good current handling are required in a small footprint. The device is suited for operation in standard low-voltage electronics (such as 3.3 V and 5 V rails) and is optimized for high-frequency switching regulators found in consumer, industrial, and communications equipment. For exact inductance value, tolerance, current rating, and saturation characteristics, refer to the official Taiyo Yuden datasheet when finalizing the design.

Applications

• Step-down (buck) and step-up (boost) DC-DC converters in consumer electronics
• Power rails and POL regulators on industrial control or automation boards
• Noise filtering and energy storage in communication and networking equipment
• Battery-powered and portable devices requiring high-efficiency power stages
• Embedded and IoT systems with space-constrained power supply sections
• LED drivers and display backlight power modules

Alternatives & Replacement

When NR3015T2R2M is not available or when redesigning a power stage, alternative fixed inductors with comparable inductance, current rating, DCR, and package size may be considered. Availability, price, and long-term lifecycle status often drive the need for second-source or drop-in replacement options.

Recommended alternatives:

• Murata Electronics North America LQP03HQ7N5H02D – Redesign Required (package and electrical parameters must be checked against design requirements).
• Murata Electronics North America LQW15CN96NJ00D – Redesign Required, may suit different frequency or current needs.
• Sunlord SWPA5012S6R8MT – Redesign Required, alternative SMD power inductor for suitable designs.
• Murata Electronics North America LQP03TN12NH02D – Redesign Required, compact inductor for high-density layouts.
• Sunlord MCL1608S4R7MT – Redesign Required, general-purpose fixed inductor option.
• Sunlord SDFL1005Q3R3KTF – Redesign Required, chip inductor for small form factor designs.

Engineering note: Always verify that any replacement matches the original design requirements, including inductance value, tolerance, saturation and RMS current ratings, DC resistance, self-resonant frequency, temperature characteristics, and especially footprint and pad layout. A “Redesign Required” indication means PCB changes, compensation network retuning, or power-stage revalidation may be necessary before production use.
