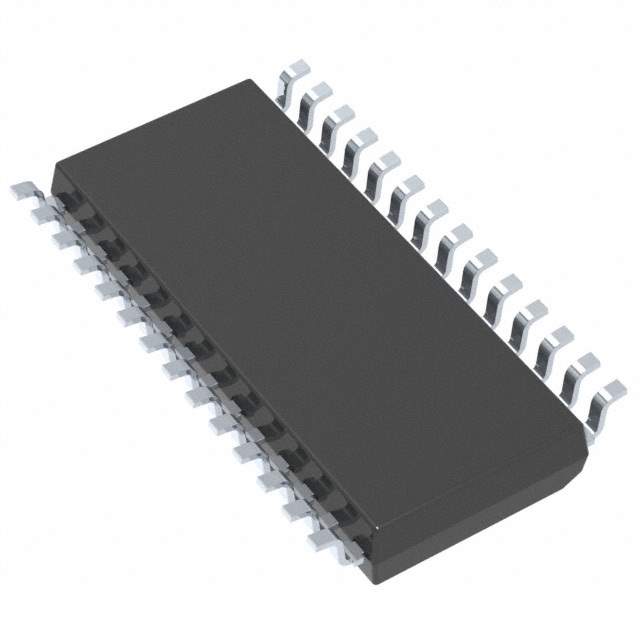

The TDA7419TR from STMicroelectronics is a sophisticated audio processor designed for the advanced demands of modern car audio systems. This high-quality component is engineered to provide an exceptional audio experience, featuring a 3-band equalizer and a multiple-source selector that enhances the flexibility and audio performance of automotive infotainment systems.
Key Features:
- 3-Band Equalizer: The processor includes a fully adjustable 3-band equalizer with selectable crossover frequencies, allowing for precise sound tailoring to match speaker characteristics and personal preferences.
- Input Multiplexer: Four stereo inputs with selectable gain are provided, making it easy to switch between multiple audio sources without compromising signal quality.
- Volume Control: A step volume control offers a wide range of adjustment with fine resolution to set the listening level to the desired comfort.
- Soft Step Function: This feature ensures smooth transitions between volume steps, minimizing the audible clicks and pops that can occur with rapid volume changes.
- Speaker Control: Independent speaker control allows for the adjustment of balance and fader, providing users with the ability to fine-tune the sound stage within the vehicle.
- Auto-Zero and Standby Functions: These built-in functions contribute to reduced noise and power consumption, enhancing the overall efficiency of the audio system.
Applications:
The TDA7419TR is ideally suited for automotive audio applications where high sound quality and extensive control over audio parameters are required. It can be integrated into car radios, infotainment systems, and multimedia receivers, offering manufacturers and users alike the ability to customize audio settings for an optimal listening experience.
Technical Specifications:
- Supply voltage range: 6V to 10.5V
- Adjustable gain for all inputs
- Signal-to-noise ratio: 110 dB
- Total harmonic distortion (THD): 0.01%
With its robust feature set and high-performance audio processing capabilities, the TDA7419TR is a top choice for automotive audio designers looking to elevate the auditory experience of vehicle occupants.
