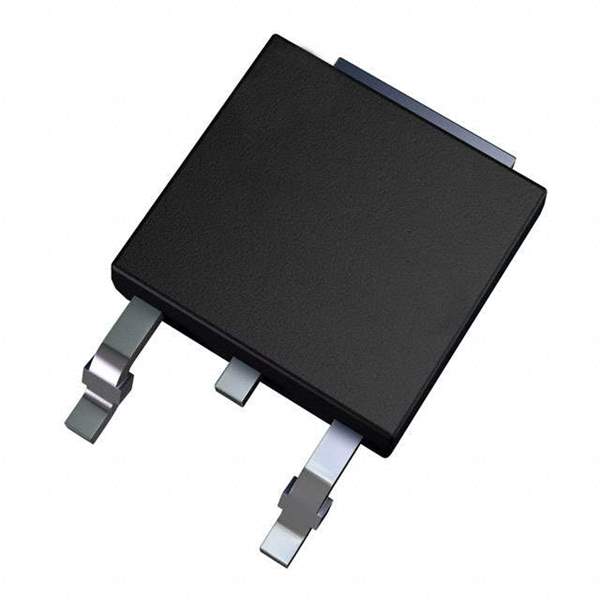

The STD7NS20T4 is a high-performance N-channel MOSFET produced by STMicroelectronics, a leader in semiconductor solutions. This MOSFET is designed to deliver efficiency and reliability for a wide range of applications, including switching regulators, switching converters, motor drivers, relay drivers, and low-voltage bus switches.
Key Features
- Low Threshold Drive: The device features a low on-voltage threshold, making it suitable for low-voltage applications where efficient power management is crucial.
- High-Speed Switching: The STD7NS20T4 is optimized for fast switching, providing improved performance in high-frequency circuits.
- Low On-Resistance (R<sub>DS(on)): Its low on-resistance minimizes conduction losses, thus enhancing overall energy efficiency.
- High Current Capability: With its ability to handle high currents, this MOSFET can be used in applications requiring robust power handling.
- 100% Avalanche Tested: Each unit is rigorously tested for avalanche performance, ensuring reliability under extreme conditions.
Applications
The versatility of the STD7NS20T4 allows it to be integrated into various electronic systems. Common applications include:
- Power management modules
- DC-to-DC converters
- Motor control circuits
- LED lighting systems
Technical Specifications
Parameter
Value
Drain-source Voltage (V<sub>DS)
200V
Continuous Drain Current (I<sub>D)
7A
Power Dissipation (P<sub>D)
45W
Operating Temperature Range
-55°C to +150°C
With its robust design and superior performance characteristics, the STD7NS20T4 from STMicroelectronics stands out as a reliable choice for designers seeking a high-quality N-channel MOSFET for their power conversion and management needs.
