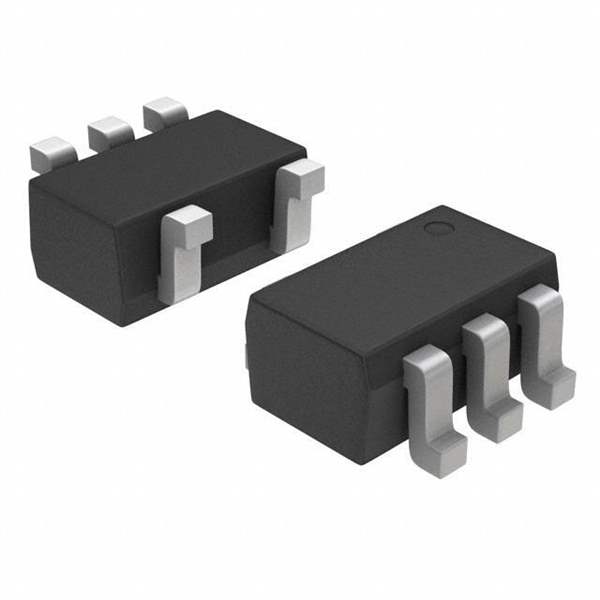

The NL17SZ06DFT2G is a high-performance single inverter produced by ON Semiconductor, a renowned leader in the semiconductor industry. This device is designed to deliver precision logic signal inversion with a high degree of reliability and efficiency, making it an ideal choice for a wide range of applications in modern electronic circuits.

Key Features:

• Logic Type: CMOS
• Output Type: Push-Pull
• Voltage - Supply: 1.65V to 5.5V
• Operating Temperature: -55°C to +125°C
• Mounting Type: Surface Mount
• Package / Case: SC-88A, SOT-353
• Propagation Delay: 2.6ns at 5V
• Current - Output High, Low: 32mA, 32mA
• Logic Level - Low: 0.5V (Max) at Vcc = 1.65V
• Logic Level - High: 1.15V (Min) at Vcc = 1.65V

The NL17SZ06DFT2G is designed for optimal performance in a compact SC-88A, SOT-353 package, ensuring minimal footprint on PCBs and making it suitable for space-constrained applications. Its wide operating voltage range of 1.65V to 5.5V allows for use in various logic level environments, and its low power consumption makes it an energy-efficient choice for battery-operated devices.

With its fast propagation delay of only 2.6ns at 5V, the NL17SZ06DFT2G is capable of high-speed operation, which is critical in timing-sensitive applications. The push-pull output ensures a strong signal drive capability with 32mA current for both high and low outputs, thus providing robust signal transmission and reducing the risk of signal loss.

Furthermore, the device is characterized for operation from -55°C to +125°C, which guarantees functionality across a broad range of temperature conditions. This feature makes the NL17SZ06DFT2G suitable for industrial, automotive, and military applications where extreme temperatures are commonplace.

ON Semiconductor's commitment to quality and performance is evident in the NL17SZ06DFT2G, making it a trusted component for designers and engineers seeking to build reliable and efficient electronic systems.
