Overview

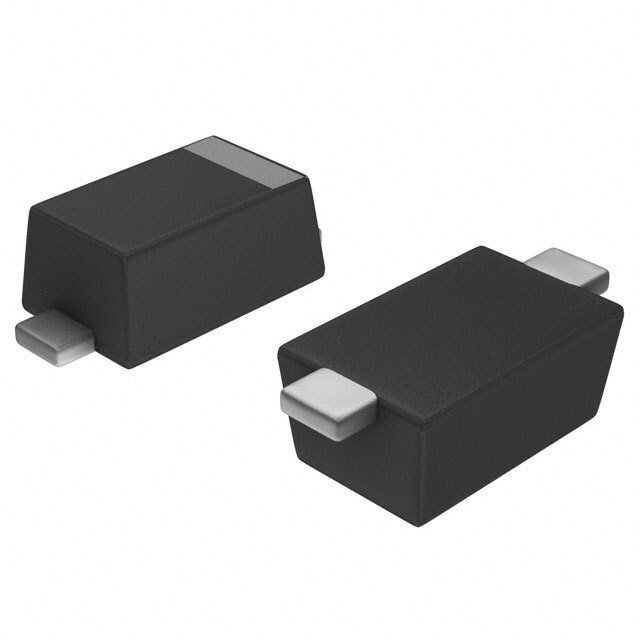

The PMEG6010CEH from NXP / Nexperia is a single rectifier diode designed for general-purpose high-efficiency rectification in low- to medium-power applications. Devices in this family are typically optimized for low forward voltage drop and fast recovery, helping to minimize power loss and heat dissipation in compact designs. As a single rectifier, it is commonly used for polarity protection, freewheeling, signal rectification, and low-voltage DC conversion stages in consumer, industrial, and automotive electronics. It is supplied in a small surface-mount package, making it suitable for high-density PCBs and automated assembly lines. For exact parameters such as maximum reverse voltage, forward current rating, and thermal characteristics, refer to the official Nexperia datasheet for PMEG6010CEH before finalizing the design.

Applications

• Output rectification and polarity protection in DC power supplies and adapters
• Freewheel and flyback paths in DC-DC converters and motor driver stages
• General-purpose rectification and steering diodes in embedded and consumer electronics
• Clamp and protection networks in industrial control and automation equipment
• Signal and auxiliary power rectification in communication and networking hardware
• Low-profile rectifier functions in automotive and transportation ECUs (depending on qualification)

Alternatives & Replacement

Depending on stock availability, lifecycle status, or specific design constraints, you may need to consider alternative rectifier or switching diodes with similar voltage, current, and switching performance, as well as a compatible package.

Recommended alternatives:

• Nexperia USA Inc. BAS516 – Redesign Required (check package, current and voltage ratings)
• ON Semiconductor MBRS140T3G – Redesign Required (Schottky rectifier with different package/specs)
• Vishay US1M-E3/61T – Redesign Required (ultrafast rectifier, verify ratings and footprint)
• ON Semiconductor MBRA340T3G – Redesign Required (rectifier with different voltage/current capability)
• Vishay LL4148-GS08 – Redesign Required (small-signal switching diode, not a drop-in)
• Diodes Incorporated ES1D-13-F – Redesign Required (fast rectifier, confirm mechanical and electrical fit)

Engineering note: none of the alternatives listed are guaranteed drop-in replacements. Before substituting, always verify pinout, package footprint, maximum reverse voltage, average forward current, surge current, reverse leakage, and dynamic behavior (reverse recovery time, capacitance). Requalification and at least a limited board redesign may be necessary to ensure safe operation and compliance with your system requirements.
