The NXP PESD12VL1BA,115 is a state-of-the-art ESD protection diode designed to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) and other transient voltage events. This component is part of NXP's extensive range of ESD protection devices, offering reliable and robust protection in a compact form factor.

This particular model, the PESD12VL1BA,115, is specifically engineered to protect against ESD pulses up to 30 kV, ensuring compliance with the IEC 61000-4-2 standard. It features a low clamping voltage and a low capacitance, making it ideal for use in applications where signal integrity is paramount, such as USB interfaces, HDMI, Ethernet, and other high-speed data lines.

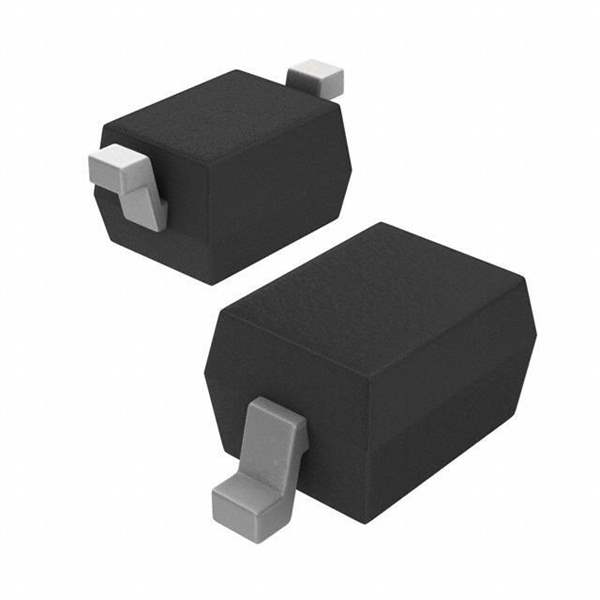

The PESD12VL1BA,115 is housed in a small SOD-323 package, which is not only space-efficient but also allows for easy integration into a wide range of electronic assemblies. The device's bidirectional design provides symmetrical ESD protection, which is particularly beneficial for AC signal lines or where the polarity may vary.

Key features of the PESD12VL1BA,115 include:

• ESD protection of up to 30 kV (IEC 61000-4-2)
• Very low dynamic resistance (Rdyn)
• Low clamping voltage
• Low capacitance to preserve signal integrity
• Support for high-speed data rates
• Bi-directional ESD protection
• RoHS compliant and Halogen-free

The PESD12VL1BA,115 is suitable for protecting a wide range of electronic devices, including smartphones, tablets, computers, digital cameras, and other portable devices. Its robust protection capabilities and small form factor make it an essential component for designers looking to enhance the durability and longevity of their products against the common threat of ESD damage.

For detailed specifications, application notes, and additional information, engineers and designers are encouraged to consult the datasheet and support documentation provided by NXP Semiconductors.
