Spezifikationen der Produkte

Kategorien Integrated Circuits
Hersteller Maxim Integrated
Verpackung Tube/Rail
Status Active
Typ Transceiver
Protokoll RS422, RS485
Anzahl von Fahrern/Empfängern 1/1
Duplex Half
Hysterese des Empfängers 70mV
Datenrate 250kbps
Versorgungsspannung - Betrieb 4.75 V to 5.25 V
Temperaturbereich - Betrieb 0°C to 70°C
Montage SMD (SMT)
Koffer/Paket 8-SOIC
Zustand der Lagerung Dry storage cabinet & Humidity protection package
Win Source Teilenummer 021800-MAX487ECSA+
Handelt es sich um ein häufig verwendetes Teil? Yes
Popularität High
Gefälschte Bedrohung auf dem freien Markt 48 pct.
Stand von Angebot und Nachfrage Limited
Ultra Librarian 3D-Modell Ultra Librarian MAX487ECSA+ CAD-Modell

Beschreibung

Maxim Integrated MAX487ECSA+ Transceiver Overview

The MAX487ECSA+ from Maxim Integrated is a low-power transceiver designed for RS-485 and RS-422 communication. It is a highly integrated solution that provides bidirectional communication capabilities for half-duplex and full-duplex applications. With its robust design, the MAX487ECSA+ is suitable for industrial environments where reliable data transmission is critical.

Key Features

  • Electrical Interface: The device supports RS-485/RS-422 communication standards, ensuring compatibility with a wide range of industrial networks.
  • Low Quiescent Current: It operates with a very low supply current, typically 120µA, making it ideal for power-sensitive applications.
  • Extended Temperature Range: The MAX487ECSA+ is designed to operate over a wide temperature range from -40°C to +85°C, suitable for harsh environmental conditions.
  • High Speed: Capable of data rates up to 2.5Mbps, it can handle high-speed data transmission requirements.
  • Integrated Protection: The device includes fail-safe circuitry that guarantees a logic-high receiver output when the receiver inputs are open or shorted, or when they are connected to a terminated transmission line with all drivers disabled.
  • Low Power Shutdown Mode: An optional receiver and driver shutdown mode further reduces the supply current to less than 5µA, enhancing power conservation in idle periods.
  • Pin-Compatible Upgrades: The MAX487ECSA+ is part of a family of transceivers that are pin-compatible, making it easy to upgrade existing designs.
  • ESD Protection: It includes enhanced electrostatic discharge (ESD) protection up to ±15kV, making it robust against transient voltage spikes.

Applications

The MAX487ECSA+ is ideal for a variety of applications within the industrial, telecommunication, and automation sectors. It is commonly used in networked devices such as factory automation controllers, security systems, building automation, and other data communication systems that require reliable data transmission over long distances or in noisy environments.

Package and Quality

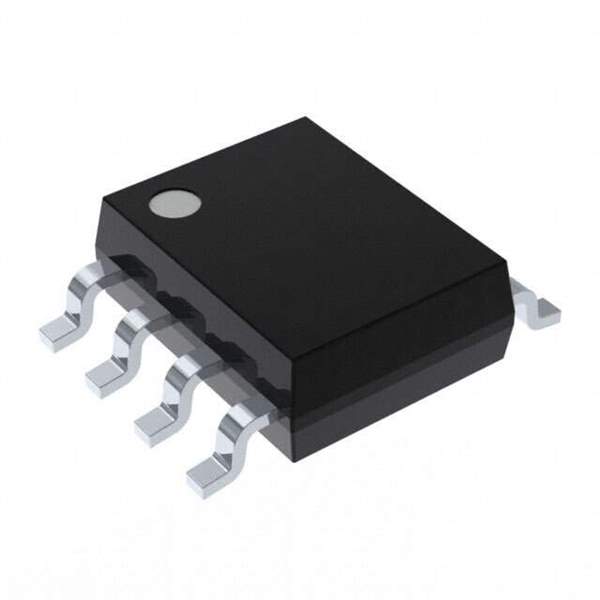

This transceiver comes in a narrow 8-pin SOIC package, providing a compact footprint for space-constrained applications. Maxim Integrated ensures high-quality standards, making the MAX487ECSA+ a reliable choice for critical communication systems.
