Spezifikationen der Produkte

Kategorien Integrated Circuits
Hersteller Maxim Integrated
Verpackung Reel - TR
Status Active
Typ Transceiver
Protokoll RS422, RS485
Anzahl von Fahrern/Empfängern 1/1
Duplex Half
Hysterese des Empfängers 70mV
Datenrate 2.5Mbps
Versorgungsspannung - Betrieb 4.75 V to 5.25 V
Temperaturbereich - Betrieb 0°C to 70°C
Montage SMD (SMT)
Koffer/Paket 8-SOIC
Zustand der Lagerung Dry storage cabinet & Humidity protection package
Win Source Teilenummer 137232-MAX481CSA+
Popularität Medium
Gefälschte Bedrohung auf dem freien Markt 35 pct.
Stand von Angebot und Nachfrage Limited
Ultra Librarian 3D-Modell Ultra Librarian MAX481CSA+ CAD-Modell

Beschreibung

Product Overview: MAX481CSA+ by Maxim Integrated

The MAX481CSA+ is a high-performance, low-power, RS-485/RS-422 transceiver module designed by Maxim Integrated, a company renowned for its expertise in developing integrated circuits for analog and mixed-signal applications. This transceiver is specifically engineered to facilitate bidirectional data communication on multipoint bus transmission lines, making it an ideal choice for industrial, network, and telecommunications systems.

Key Features

  • Electrical Specifications: The MAX481CSA+ operates from a single 5V supply and is fully compliant with the EIA/TIA-485 and RS-422 standards. It features a quiescent current of just 300µA, which drops to a mere 10µA in low-power shutdown mode, making it exceptionally energy-efficient for battery-powered applications.
  • High-Speed Operation: With a maximum data rate of 2.5Mbps, this transceiver is capable of handling high-speed data transmission while maintaining signal integrity across long cable runs.
  • Extended Temperature Range: The device is designed to operate over a wide temperature range from -40°C to +85°C, ensuring reliable performance in harsh environmental conditions.
  • Fail-Safe Feature: The MAX481CSA+ incorporates a fail-safe feature that guarantees a logic-high receiver output when the input is open or shorted, thus preventing any erroneous data transmission.
  • ESD Protection: It provides built-in electrostatic discharge (ESD) protection up to ±15kV (Human Body Model), safeguarding the transceiver from potential damage due to static electricity.

Applications

The versatility of the MAX481CSA+ allows it to be used in a variety of applications, including but not limited to:

  • Industrial control systems
  • Building automation
  • Network equipment
  • Telecommunication interfaces

Package and Quality

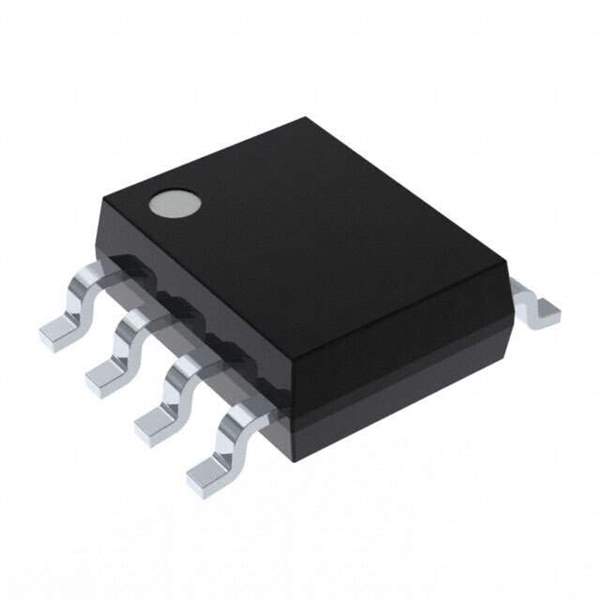

The transceiver comes in a space-saving 8-pin SOIC package, which is suitable for compact designs. Maxim Integrated ensures high-quality standards, and the MAX481CSA+ is no exception, providing reliable and consistent performance for critical communication systems.
