Product Overview: RS1D-13-F - Diodes Incorporated

The RS1D-13-F is a high-efficiency, surface-mount rectifier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is part of Diodes Incorporated's extensive range of rectifiers, which are known for their reliability and performance in a variety of applications.

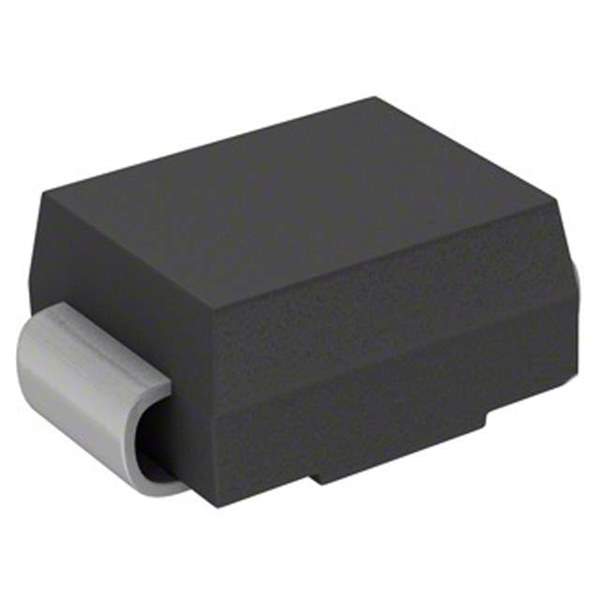

With its compact SMA (DO-214AC) package, the RS1D-13-F is optimized for automated assembly processes, making it an ideal choice for high-volume production. The device features a repetitive peak reverse voltage of 200V and an average forward current of 1A, making it suitable for a wide range of applications that require efficient power conversion and line rectification.

Key Features:

• Low Forward Voltage Drop: The RS1D-13-F boasts a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• High Surge Current Capability: This diode can withstand high surge currents, providing robust performance during transient conditions and ensuring reliability in demanding environments.
• Thermal Performance: The SMA package enhances thermal performance, allowing for better heat dissipation and improved long-term stability.
• RoHS Compliant: As an environmentally friendly product, the RS1D-13-F complies with the RoHS directive, which restricts the use of certain hazardous substances in electronic equipment.

Applications:

The RS1D-13-F is versatile and can be used in a variety of electronic circuits, including:

• Power Management Systems
• DC-DC Converters
• Free-Wheeling Diodes in Converters and Motor Control Circuits
• Reverse Voltage Protection
• Rectification in Consumer and Industrial Applications

With its excellent performance characteristics, the RS1D-13-F from Diodes Incorporated is a reliable and cost-effective solution for designers looking to improve the efficiency and durability of their electronic systems. Its combination of high efficiency, thermal performance, and surge current capability makes it a valuable component in a wide array of power conversion applications.
