The DMG2305UX-7 is a high-performance P-Channel MOSFET from Diodes Incorporated, designed to deliver efficiency and reliability for a wide range of applications. This MOSFET is an ideal choice for power management tasks thanks to its low on-resistance and high threshold voltage. It's housed in a compact SOT-23 package, making it suitable for space-constrained applications.

Key Features

• Low On-Resistance: The device features an extremely low on-resistance of 65mΩ at VGS = -4.5V, which enhances its efficiency and reduces power losses during operation.
• High Threshold Voltage: With a threshold voltage of -0.45V (min) to -1.0V (max), the DMG2305UX-7 ensures a robust performance even in circuits with low gate drive voltages.
• High Continuous Drain Current: It supports a high continuous drain current of -3.1A, making it capable of handling significant power levels.

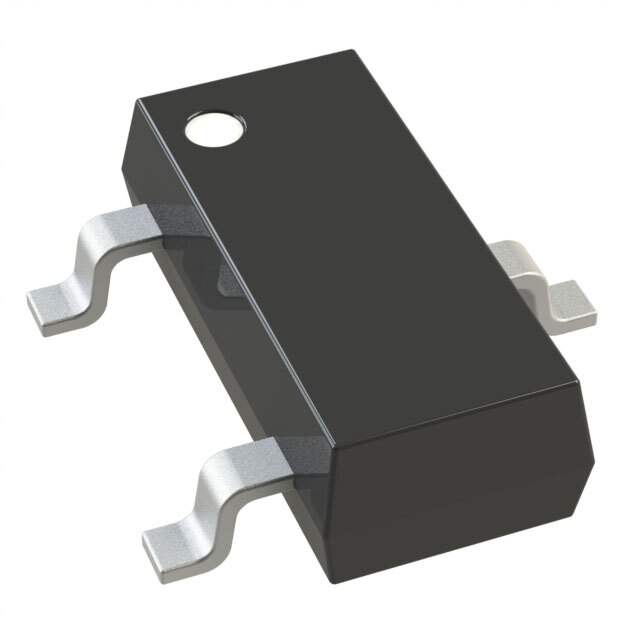

• Advanced Packaging: The SOT-23 package is not only small but also offers excellent thermal performance, which is crucial for maintaining stability and longevity in various applications.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, this MOSFET is lead-free and RoHS compliant, minimizing the environmental impact of electronic components.

Applications

The DMG2305UX-7 is versatile and can be used in various applications, including:

• Power Management Circuits
• Load Switches
• Battery Management Systems
• DC-DC Converters
• Portable Devices

Product Summary

In conclusion, the DMG2305UX-7 from Diodes Incorporated is a robust and efficient solution for designers looking to optimize their power management systems with a reliable P-Channel MOSFET.
