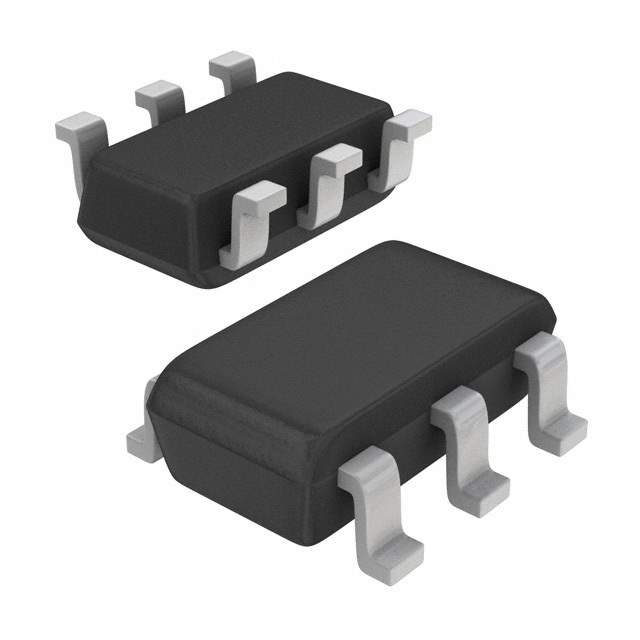

Product Overview: AP3036BKTR-G1 from Diodes Incorporated

The AP3036BKTR-G1 is a high-performance, constant current LED driver designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This compact and efficient integrated circuit (IC) is engineered to provide a steady current source for driving high brightness LEDs, making it an ideal choice for a wide range of lighting applications.

Key Features

• Constant Current Output: The AP3036BKTR-G1 ensures a stable current supply to maintain consistent brightness and performance of LEDs, which is critical for applications where uniform illumination is essential.
• Wide Input Voltage Range: This LED driver can operate across a broad input voltage range, accommodating various power supplies and enabling flexibility in lighting design.
• High Efficiency: With its optimized design, the AP3036BKTR-G1 achieves high efficiency, which helps in reducing energy consumption and heat generation, thus extending the life of the lighting system.
• Compact SOT-26 Package: The small form factor of the SOT-26 package makes it suitable for space-constrained applications, allowing designers to create compact lighting solutions.
• Thermal Protection: The built-in thermal protection feature safeguards the IC from overheating, ensuring reliability and safety in operation.
• PWM Dimming Capability: It supports Pulse Width Modulation (PWM) dimming, providing designers with the ability to adjust the brightness of the LEDs according to the requirements of the application.

Applications

The AP3036BKTR-G1 is versatile and can be used in a variety of lighting applications. Its reliability and efficiency make it suitable for:

• Backlighting for LCD TVs and monitors
• General illumination for residential and commercial spaces
• Automotive interior and exterior lighting
• Signage and decorative LED lighting
• Portable and battery-powered lighting solutions

With its robust feature set, the AP3036BKTR-G1 from Diodes Incorporated is a top-tier solution for any project that requires a high-quality, constant current LED driver. Its performance, coupled with Diodes Incorporated's reputation for reliability, makes it a smart choice for designers and engineers looking to enhance their lighting systems.
