Analog Devices Inc. ADA4522-1ARZ-R7 Operational Amplifier

The ADA4522-1ARZ-R7 is a high-performance operational amplifier (op-amp) designed and manufactured by Analog Devices Inc., a leader in precision signal processing technology. This particular component is part of the ADA4522 series, known for its ultra-low noise and low input bias current, making it an excellent choice for a wide range of applications requiring high accuracy and signal fidelity.

The ADA4522-1ARZ-R7 features a single amplifier channel with a rail-to-rail output swing, which allows for a wide dynamic range especially beneficial when operating at low supply voltages. With a power supply range from 4.5 V to 55 V, this op-amp provides designers with flexibility for various circuit configurations and is compatible with a broad spectrum of analog signals.

One of the standout specifications of the ADA4522-1ARZ-R7 is its extremely low offset voltage, typically 2.5 µV at 25°C, which minimizes error in precision applications. Additionally, the device boasts a low input bias current of just 150 pA maximum at 25°C, further enhancing its accuracy over a wide temperature range. This makes it particularly well-suited for high-impedance sensor amplification and precise data acquisition systems.

The operational amplifier also features low noise density of 5.5 nV/√Hz at 1 kHz, ensuring a clean signal amplification with minimal added noise. This makes it ideal for audio applications, medical instrumentation, and other noise-sensitive electronics. Moreover, the ADA4522-1ARZ-R7 has a robust design that includes overvoltage protection up to 60 V for both power supply and input, safeguarding the device against unexpected voltage spikes.

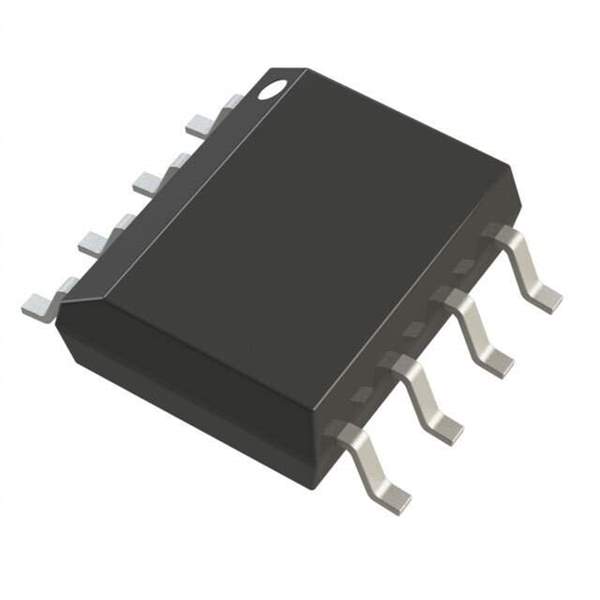

Offered in a compact 8-lead SOIC package, the ADA4522-1ARZ-R7 is designed for easy integration into a variety of electronic systems. Its small footprint allows for space-saving on PCBs, while still providing the high performance expected from Analog Devices products.

Whether you are designing precision instrumentation, professional audio equipment, or any application where signal integrity is paramount, the ADA4522-1ARZ-R7 operational amplifier from Analog Devices Inc. is an excellent choice that combines high accuracy, low noise, and exceptional stability in a versatile package.
