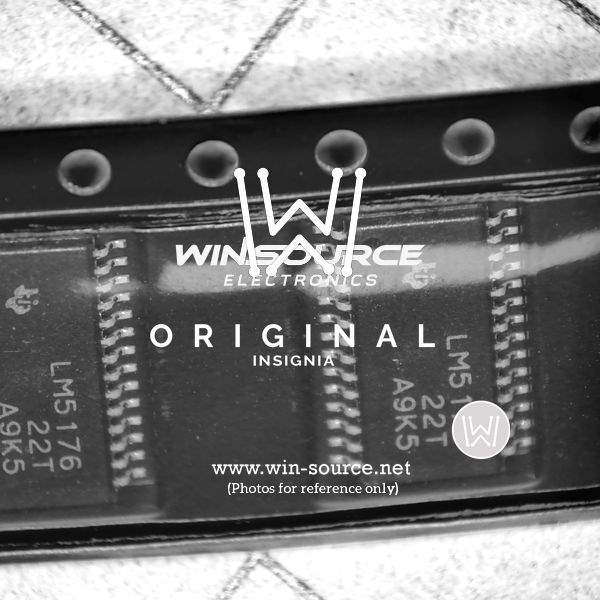

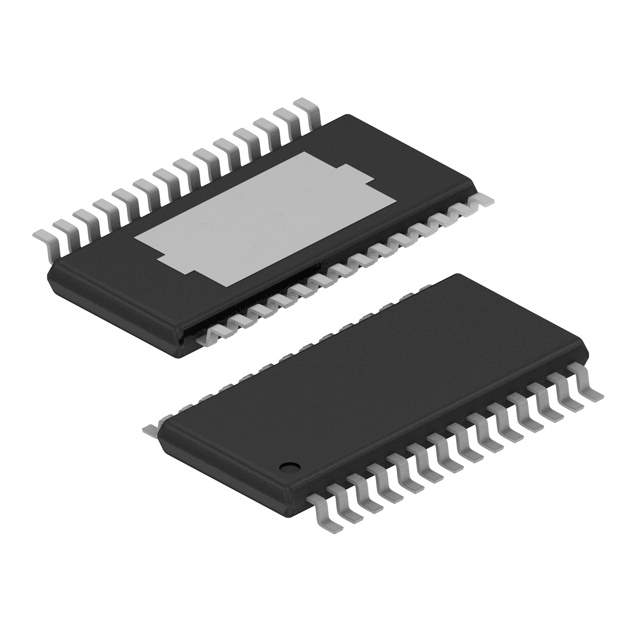

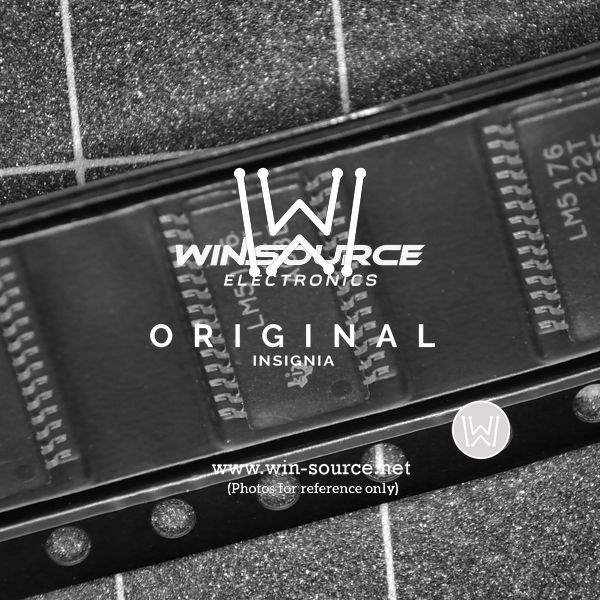

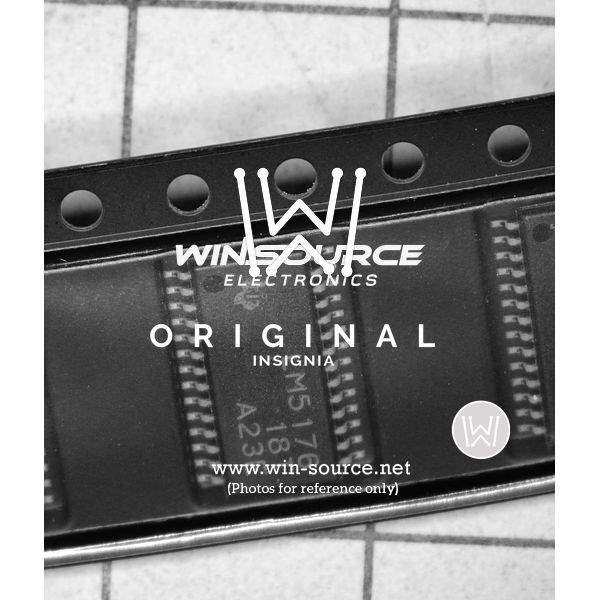

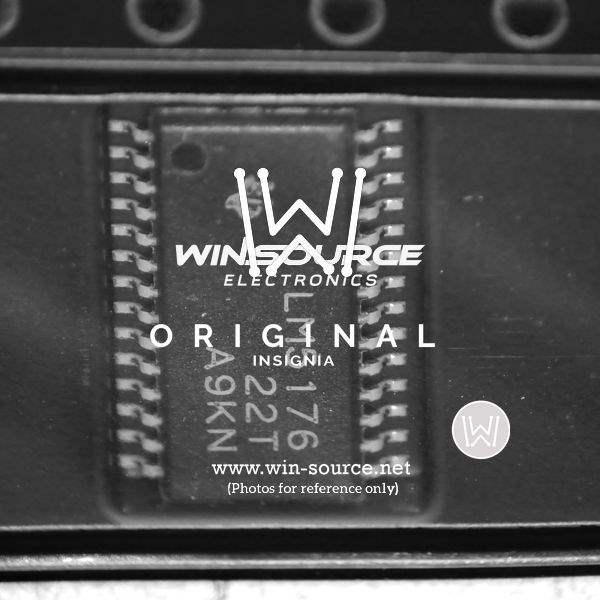

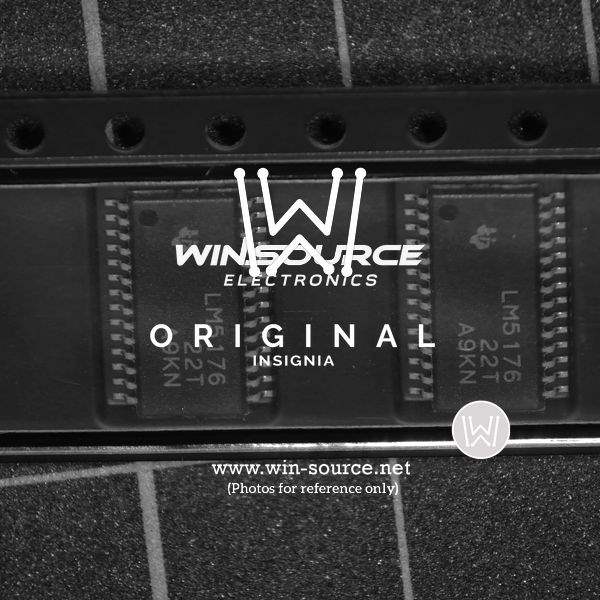

Introducing the LM5176PWPR from Texas Instruments

The LM5176PWPR is a versatile and efficient DC/DC converter integrated circuit (IC) designed by Texas Instruments (TI), a leader in semiconductor solutions. This high-performance chip is capable of managing wide input voltage ranges and delivering a stable output, making it ideal for a variety of applications in electronics where power efficiency and reliability are paramount.

Key Features

• Wide Input Voltage Range: The LM5176PWPR operates with an input voltage range from 4V to 55V, accommodating various power sources from batteries to industrial power rails.
• Dual-Phase Operation: It supports dual-phase operation which enables the sharing of load currents across phases, reducing the stress on individual components and improving overall efficiency and thermal performance.
• Adjustable Output Voltage: Users can adjust the output voltage to meet the requirements of their specific application, providing flexibility and precision in power management.
• Buck-Boost Capability: This IC can perform buck or boost voltage conversions, or even buck-boost conversions, which means it can step down or step up the input voltage as needed.
• Integrated MOSFETs: The inclusion of high-side and low-side MOSFETs reduces the number of external components required, simplifying design and saving board space.
• Programmable Switching Frequency: The switching frequency is programmable up to 750 kHz, allowing designers to optimize the size of the inductor and capacitors for their specific application.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating, enhancing the longevity and reliability of the application.

Applications

The LM5176PWPR is well-suited for a broad range of applications, including but not limited to:

• Industrial power supplies
• Automotive systems
• Telecommunication equipment
• Portable and battery-powered devices
• Uninterruptible power supplies (UPS)

With its robust design and flexible features, the LM5176PWPR is an excellent choice for designers looking to create efficient, reliable, and compact power management systems. Texas Instruments provides comprehensive support for this IC, including detailed datasheets, application notes, and design tools to streamline the development process.
