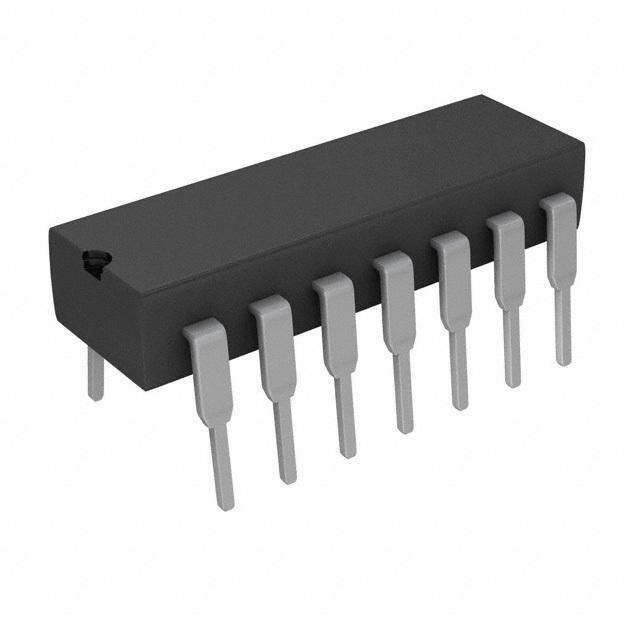

Teil Nr. LM324N
Hersteller Texas Instruments
Katalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Beschreibung IC OPAMP GP 1.2MHZ 14DIP
Datenblatt
Muster
Rohs-status rohs
ECAD-module
Brauchen Sie Hilfe

Spezifikationen der Produkte Problem melden?

Kategorien Integrated Circuits
Hersteller Texas Instruments
Verpackung Tube/Rail
Status Active
Verstärker Typ General Purpose
Anzahl der Schaltkreise 4
Anstiegsrate 0.5 V/μs
Verstärkungs-Bandbreitenprodukt (GBP) 1.2MHz
Strom - Eingangsvorspannung 20nA
Spannung - Eingangsoffset 3mV
Betriebsversorgungsstrom 1.4mA
Kanal-Ausgangsstrom 60mA
Versorgungsspannung - Betrieb 3 V to 32 V, ±1.5 V to 16 V
Temperaturbereich - Betrieb 0°C to 70°C
Montage Through Hole
Koffer/Paket 14-PDIP
Zustand der Lagerung Dry storage cabinet & Humidity protection package
Win Source Teilenummer 019081-LM324N
Familienname LM324
Einführung Datum September 01, 1975
ECCN EAR99
Herkunftsland Malaysia, Mexico
Halogenfrei Not Compliant
Geschätztes EOL-Datum 2027
Handelt es sich um ein häufig verwendetes Teil? Yes
Popularität High
Gefälschte Bedrohung auf dem freien Markt 43 pct.
Stand von Angebot und Nachfrage Balance
Anwendungsbereich Used in Signal Processing, Consumer Electronics, Portable Devices, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement
Ultra Librarian 3D-Modell Ultra Librarian LM324N CAD-Modell

Beschreibung

LM324N from Texas Instruments is a widely recognized quad operational amplifier used in general-purpose analog signal conditioning, sensing, filtering, and control circuits. Engineers often consider devices in this family for cost-sensitive designs that need multiple amplifier channels in a single package for industrial controls, consumer electronics, test fixtures, power monitoring, and embedded analog front ends. Its positioning in the Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps category makes it relevant for designs where flexibility, broad ecosystem familiarity, and straightforward integration matter. Lifecycle status for LM324N is currently listed here as information not available, so design teams should confirm current production status directly with Texas Instruments or authorized channel sources before committing to long-term programs. RoHS compliance information is also not available in the provided data. Procurement and compliance teams should verify the latest datasheet, part-specific ordering suffix, and manufacturer documentation to confirm environmental status and sourcing suitability.
