The ESD204DQAR is a state-of-the-art ESD protection device from the renowned semiconductor manufacturer, Texas Instruments. This robust component is specifically designed to safeguard high-speed interfaces against electrostatic discharge (ESD) and other voltage-induced transient events. Its compact form factor and exceptional performance make it an ideal choice for a wide range of applications, including consumer electronics, telecommunications, and industrial equipment.

Key Features

• Advanced ESD Protection: The ESD204DQAR offers superior ESD protection up to ±10 kV (IEC 61000-4-2, Contact Discharge) and ±15 kV (IEC 61000-4-2, Air-Gap Discharge), safeguarding sensitive circuitry from damaging electrostatic events.
• Low Capacitance: With a low loading capacitance of 0.15 pF (typical), this device is particularly well-suited for protecting high-speed differential data lines without compromising signal integrity.
• High-Speed Interface Compatibility: It is designed to protect high-speed interfaces such as USB 3.1 Gen 1, HDMI 2.0, and Thunderbolt, ensuring reliable protection without hindering data throughput.
• Flow-Through Design: The ESD204DQAR features a flow-through design that simplifies PCB layout and minimizes signal distortion, making it easier to integrate into existing and new designs.

Applications

• Smartphones, tablets, and other portable electronic devices
• High-definition multimedia interfaces (HDMI), including TVs and monitors
• USB interfaces, including USB 3.1 Gen 1 ports and hubs
• High-speed data line and signal line protection for consumer, computing, and networking devices

Quality and Reliability

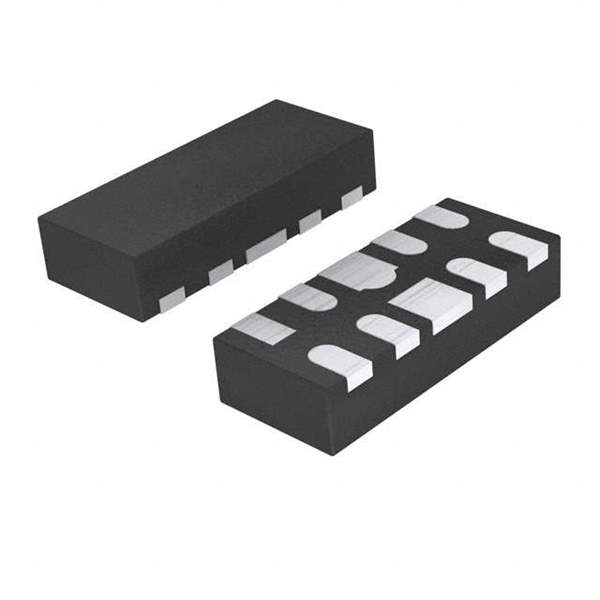

Texas Instruments is known for its commitment to quality, and the ESD204DQAR is no exception. This product is built using the latest semiconductor fabrication technologies, ensuring high reliability and performance under extreme conditions. The ESD204DQAR is available in a small DQA (X2SON) package, providing a space-saving solution for compact electronic assemblies.

Overall, the ESD204DQAR from Texas Instruments represents a blend of advanced ESD protection, minimal signal interference, and design flexibility, making it an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
