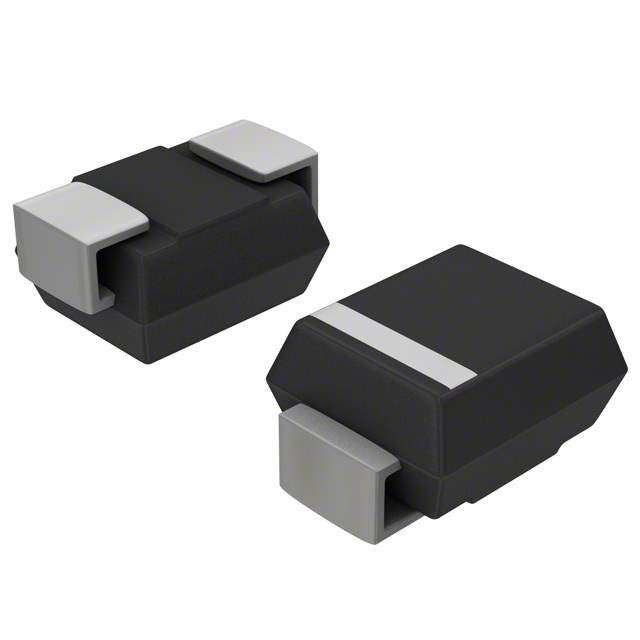

The STPS2L60A from STMicroelectronics is a robust and efficient Schottky rectifier designed for a wide range of applications. This semiconductor device is known for its low forward voltage drop and high surge current capability, making it an ideal choice for high-efficiency power supplies, converters, and freewheeling diodes in various electronic circuits.
Key Features
- Average Forward Current: The STPS2L60A is capable of handling an average forward current of 2 A, which is suitable for moderate power requirements.
- Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage (VRRM) of 60 V, it can withstand high voltage spikes without breakdown, ensuring reliability in harsh electrical environments.
- Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which enhances the overall efficiency by minimizing power loss during conduction.
- High Surge Current Capability: It can sustain a high surge current, thus providing excellent performance during transient conditions.
- Power Loss Reduction: Its characteristics are optimized to decrease power loss and improve efficiency in switching applications.
- Package: Available in a DO-41 axial package, the STPS2L60A is easy to integrate into various circuit designs.
Applications
The STPS2L60A is versatile and can be used in a range of applications, including:
- Switching power supplies
- DC/DC converters
- Power management devices
- Reverse polarity protection
- Automotive applications
- Free-wheeling diodes in converters and motor control circuits
Quality and Reliability
STMicroelectronics is committed to delivering high-quality products. The STPS2L60A is manufactured with stringent quality control processes and is designed to meet the reliability requirements of industrial and automotive-grade applications. Its robustness and performance make it a preferred choice for engineers and designers looking for a reliable Schottky rectifier solution.
