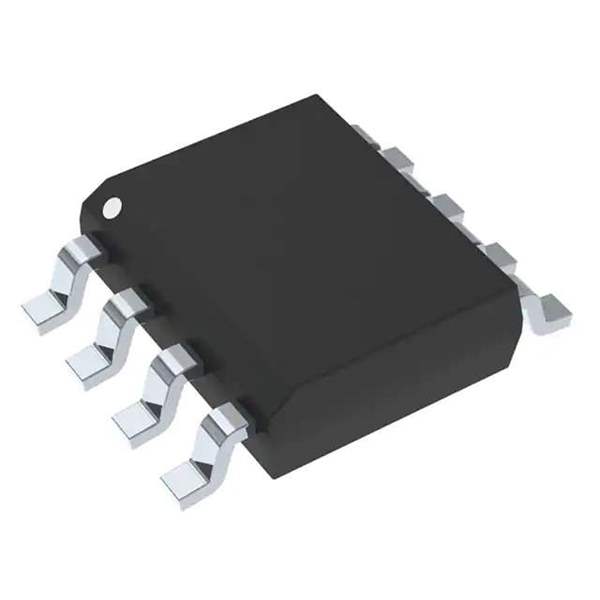

ON Semiconductor NCP1217AD100R2 PWM Current-Mode Controller

The ON Semiconductor NCP1217AD100R2 is a versatile and efficient PWM current-mode controller designed for high-performance power supply applications. This advanced component integrates a host of features to facilitate the design of low-power standby and robust power supplies, particularly suited for AC-DC adapters, offline battery chargers, and auxiliary supplies.

One of the key features of the NCP1217AD100R2 is its adjustable switching frequency, which can be set up to 100kHz. This flexibility allows designers to optimize their power supply for efficiency or for the size of the passive components, making it an excellent choice for both compact and energy-conscious designs. The device also includes an internal ramp compensation, which enhances the stability of the control loop over a wide range of output loads.

The NCP1217AD100R2 incorporates several protection features to ensure the longevity and reliability of the power supply. It has built-in Overvoltage Protection (OVP), which prevents the output voltage from exceeding a safe threshold, and Overpower Protection (OPP) that limits the output power to prevent excessive current draw. Additionally, the controller offers Brown-Out Protection, which ensures stable operation during low input voltage conditions, and an adjustable Overcurrent Protection (OCP) that safeguards the system against short circuits and overloads.

Another notable characteristic of this PWM controller is its Skip Cycle capability at light loads, which significantly improves efficiency by reducing switching losses when the power demand is low. This feature is particularly useful for meeting energy-saving standards such as Energy Star or standby power requirements.

The NCP1217AD100R2 is available in a compact DIP-7 package, making it easy to integrate into various PCB layouts. Its robust design and comprehensive feature set make it an ideal choice for designers looking to create efficient, reliable, and cost-effective power supply solutions.

With its combination of adjustable frequency, multiple protection mechanisms, and enhanced efficiency features, the ON Semiconductor NCP1217AD100R2 stands out as a high-quality PWM current-mode controller suitable for a wide array of power management applications.
