The 74HC14D,653 is a high-speed Si-gate CMOS device from NXP Semiconductors, renowned for its robust performance and versatility in a wide range of electronic applications. This particular integrated circuit is part of the 74HC series, which is well-known for combining the high noise immunity of CMOS with the speed and drive capabilities of LSTTL (Low-power Schottky TTL).

Key Features

• Hex Inverting Schmitt Trigger: The 74HC14D,653 contains six independent Schmitt trigger inverters, making it ideal for transforming noisy inputs into clean, sharp output signals.
• Wide Supply Voltage Range: It operates over a wide supply voltage range from 2.0 V to 6.0 V, allowing it to be used in various logic level environments.
• High Noise Immunity: True to the 74HC family, this device provides high noise immunity and low power consumption, ensuring reliable operation even in challenging conditions.
• Low Power Dissipation: It has a balanced propagation delay and transition times, leading to low power dissipation compared to other logic families.
• ESD Protection: The device includes ESD protection circuitry, which guards against the potential damage from electrostatic discharge events.

Applications

Thanks to its unique features, the 74HC14D,653 is suitable for a variety of applications, including:

• Wave shaping and noise filtering
• Signal processing
• Logic level conversion
• Oscillator circuits
• Pulse generation

Technical Specifications

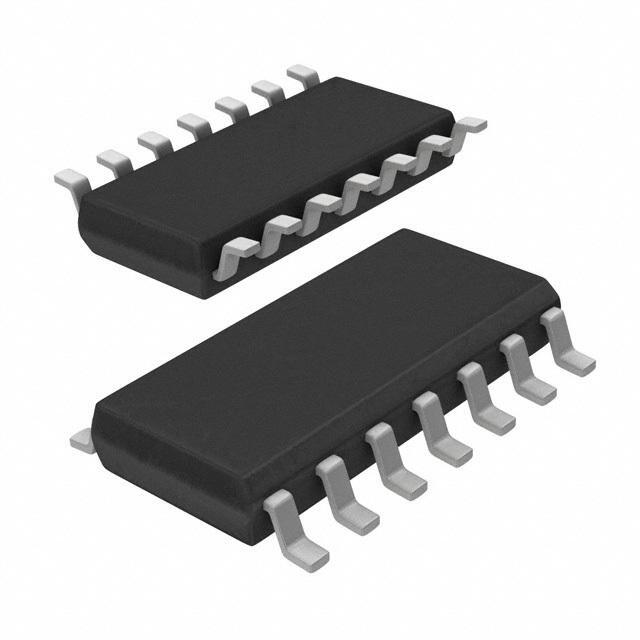

• Package: The 74HC14D,653 comes in an SO14 package, which is a small-outline integrated circuit package that is easy to handle and suitable for surface-mounted technology (SMT).
• Temperature Range: The operating temperature range for this device is between -40°C and +125°C, ensuring performance across a broad range of environmental conditions.
• Logic Type: Inverter Schmitt Trigger
• Number of Circuits: 6
• Mounting Type: Surface Mount

The 74HC14D,653 by NXP Semiconductors is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. Its versatility and performance make it an essential part of any designer's toolkit.
