Microchip Technology PIC18F4420-I/PT Microcontroller

The PIC18F4420-I/PT is a high-performance microcontroller from Microchip Technology, designed to offer a versatile and robust solution for a wide range of embedded applications. This particular model is part of the PIC18F family, which is well-known for its enhanced flash microcontrollers with 10-bit A/D converters.

This microcontroller features a powerful 8-bit CPU, 32KB of flash memory, and 1536 bytes of RAM, providing ample space and speed for complex operations and data handling. The device operates at a maximum frequency of 40MHz, which translates to a 10 MIPS (Million Instructions Per Second) performance at 5V, ensuring swift execution of instructions and tasks.

The PIC18F4420-I/PT is equipped with an array of peripherals that enhance its functionality. These include:

• Two analog comparators
• A 10-bit Analog-to-Digital Converter (ADC) with up to 13 channels
• Two Capture/Compare/PWM (CCP) modules
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module for serial communication
• Master Synchronous Serial Port (MSSP) module supporting SPI and I2C communication

With its extended voltage range, the microcontroller is designed to work efficiently in environments with varying power supplies, maintaining operation from 2.0V to 5.5V. This flexibility makes it suitable for battery-operated and portable applications.

The PIC18F4420-I/PT also features Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Brown-out Reset (BOR), and Watchdog Timer (WDT) for reliable operation under unpredictable conditions. Additionally, it includes programmable Low Voltage Detect (LVD) to safeguard against low voltage incidents.

For secure data storage and protection, the device offers 256 bytes of EEPROM. It also supports in-circuit serial programming (ICSP) and in-circuit debugging (ICD) features, which allow for straightforward development and troubleshooting.

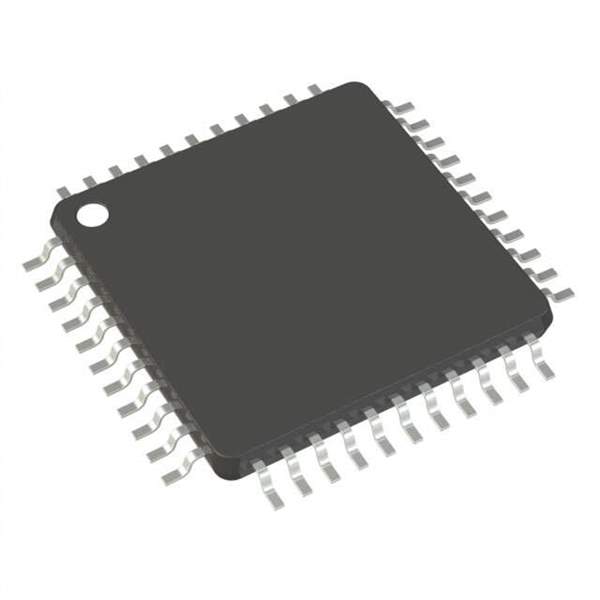

The microcontroller comes in a 44-pin TQFP package, making it a compact choice for space-constrained applications. Whether you're working on automotive systems, industrial controls, consumer electronics, or communication devices, the PIC18F4420-I/PT from Microchip Technology is a reliable and versatile choice that offers a balance of performance, power efficiency, and feature set.
