Microchip Technology PIC16F785-I/SO

The Microchip Technology PIC16F785-I/SO is a versatile and powerful 8-bit microcontroller that is designed to cater to a wide range of applications, from simple LED drivers to complex motor controllers. This microcontroller is part of Microchip's renowned PIC16F family, known for their ease of use, reliability, and cost-effectiveness.

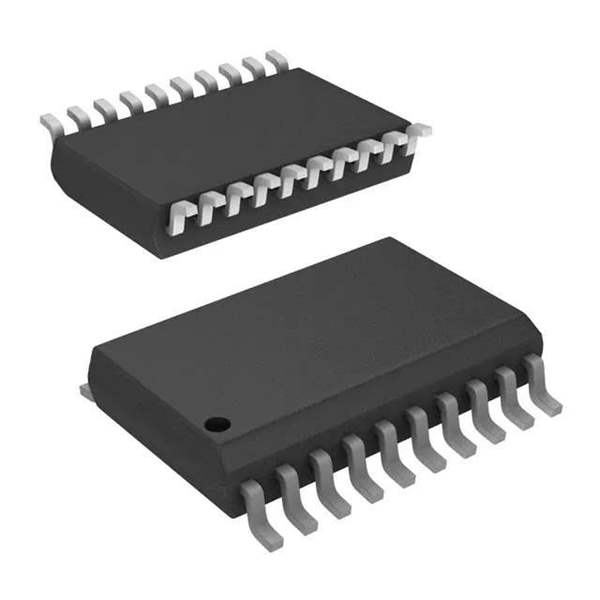

Encased in a small outline, surface-mount SOIC package, the PIC16F785-I/SO integrates a rich set of features that make it suitable for a variety of embedded systems. It comes equipped with 2048 bytes of flash memory, which provides ample space for application code, and 128 bytes of RAM for data storage. The device operates at a voltage range of 2.0V to 5.5V, allowing it to be used in both low-power and standard-power applications.

One of the standout features of the PIC16F785-I/SO is its dual operational amplifiers (op-amps), which are ideal for sensor interfacing and analog signal processing. It also boasts an enhanced Capture/Compare/PWM (CCP) module, which is essential for precise timing and control in applications like motor control and power conversion.

The microcontroller includes an onboard 10-bit Analog-to-Digital Converter (ADC) with up to 14 channels, enabling it to handle multiple analog inputs simultaneously. This feature is particularly useful in applications such as temperature monitoring, light sensing, and other situations where analog signals need to be accurately converted to digital form.

For communication purposes, the PIC16F785-I/SO offers a variety of serial interfaces including I2C, SPI, and USART, which provide excellent connectivity options for peripheral devices or for establishing communication with other microcontrollers or computers.

Its robust instruction set, programmable interrupts, and multiple oscillator selections, including an internal oscillator, provide developers with flexibility in system design. Additionally, with its extended temperature range, the PIC16F785-I/SO is well-suited for operation in harsh environments, making it a reliable choice for industrial, automotive, and consumer electronics applications.

Overall, the PIC16F785-I/SO from Microchip Technology is a highly integrated and efficient solution for developers looking to create sophisticated and responsive embedded systems with minimal space requirements and at a competitive cost.
