Microchip Technology MCP604T-I/ST Operational Amplifier

The MCP604T-I/ST is a high-precision quad operational amplifier (op-amp) designed and manufactured by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This op-amp is part of the MCP604 series, which is known for its low power consumption and general-purpose applications. The MCP604T-I/ST model offers a unique combination of performance, power efficiency, and versatility, making it an excellent choice for a wide range of electronic circuits and systems.

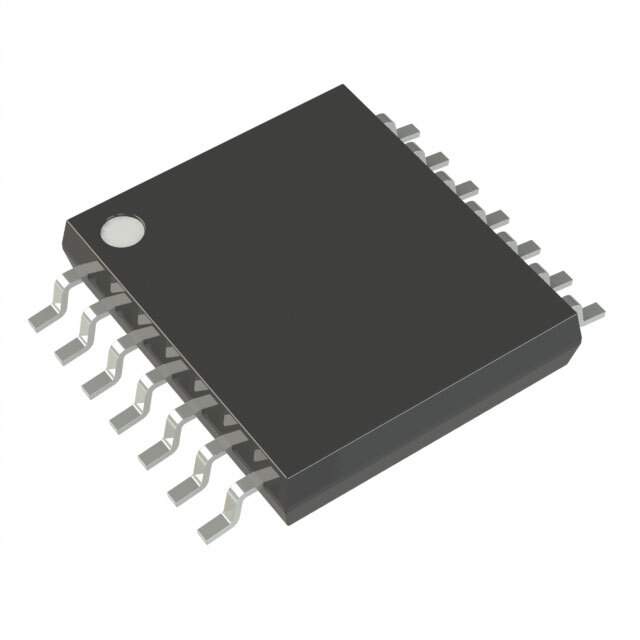

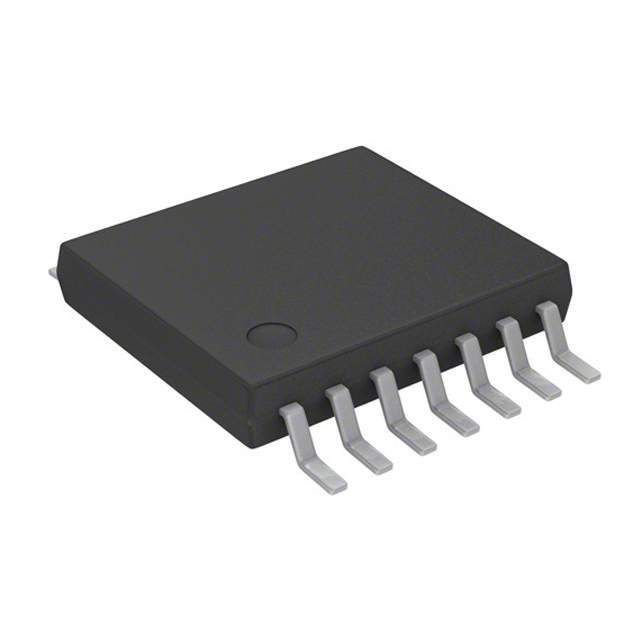

Featuring a standard TSSOP-14 package, the MCP604T-I/ST ensures a compact footprint on printed circuit boards (PCBs), which is ideal for space-constrained applications. With a single supply voltage ranging from 2.7V to 5.5V, this op-amp is suitable for battery-operated devices and low-voltage systems. Its rail-to-rail input and output swing capabilities allow for maximum signal dynamic range, which is particularly beneficial in single-supply operations.

The MCP604T-I/ST boasts a gain bandwidth product of 14 kHz and a low typical quiescent current of 230 µA per amplifier, which is advantageous for power-sensitive designs. Its low input bias current of 1 pA makes it an excellent choice for applications requiring high input impedance and minimal error, such as sensor interfaces and analog filters.

Additionally, the MCP604T-I/ST features a chip select (CS) pin that enables the user to put the amplifier into a low-power shutdown mode, further reducing power consumption when the amplifier is not in use. This feature is particularly useful in power-saving strategies for portable and remote sensing applications.

With an extended temperature range of -40°C to +125°C, the MCP604T-I/ST is robust and reliable, suitable for use in industrial environments and outdoor applications. This operational amplifier is commonly used in consumer electronics, medical devices, and automotive systems, among others, where precision and power efficiency are paramount.

Overall, the MCP604T-I/ST from Microchip Technology represents a blend of performance, power savings, and practicality, ensuring it meets the needs of modern electronic design challenges.
