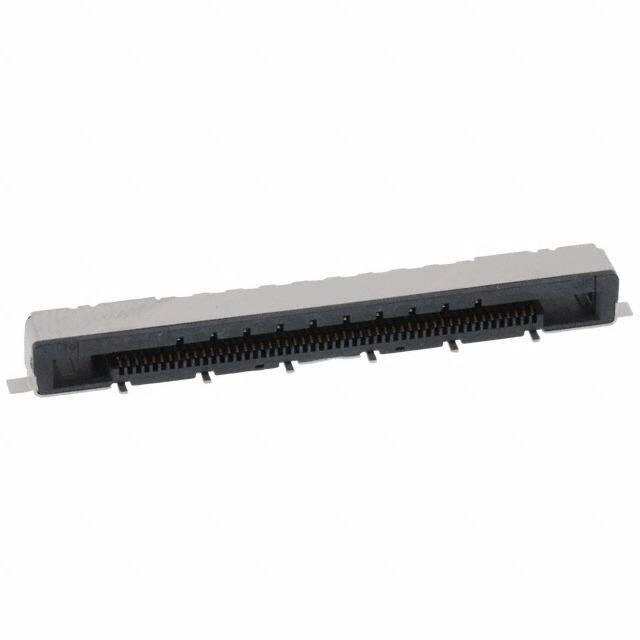

The FI-RE51S-HF-R1500 is a 51-position, right-angle, shielded, fine coaxial cable connector manufactured by JAE Electronics. It is primarily used for high-speed data transmission in display applications. These connectors are designed for thin, lightweight displays and offer excellent EMI shielding.

Applications

• LCD and LED Displays: Used to connect the display panel to the mainboard in televisions, monitors, and digital signage.
• Notebook PCs: Enables the connection between the motherboard and the display screen.
• Tablets: Provides a reliable connection for internal displays.
• Medical Equipment: Employed in medical imaging displays where high-resolution and reliable data transmission are crucial.
• Automotive Displays: Used in car navigation systems and instrument panels for connecting the display to the processing unit.

Features

• Fine Coaxial Cable Compatibility: Designed to accommodate fine coaxial cables, ensuring high signal integrity.
• Right Angle Configuration: Allows for space-saving design and easy integration into compact devices.
• Shielded Design: Provides excellent EMI (Electromagnetic Interference) shielding, reducing noise and ensuring reliable data transmission.
• 51-Position Connector: Offers a high pin count for complex display interfaces.
• Halogen-Free: Compliant with environmental regulations, making it suitable for eco-friendly applications.
• Secure Locking Mechanism: Ensures a stable and reliable connection, preventing accidental disconnections.
• High-Speed Data Transmission: Supports high-bandwidth data transfer rates for high-resolution displays.

Benefits

• Enhanced Signal Integrity: The shielded design minimizes interference, resulting in clearer and more accurate display output.
• Space Saving: The right-angle configuration allows for compact designs in space-constrained applications.
• Reliable Connection: The secure locking mechanism ensures a stable connection, reducing downtime and maintenance costs.
• Environmentally Friendly: Halogen-free construction supports environmentally conscious manufacturing practices.
• Versatile Application: Suitable for a wide range of display applications, from consumer electronics to industrial equipment.
• High Performance: Enables high-resolution display capabilities with reliable data transmission.

Additional Details

The FI-RE51S-HF-R1500 connector is typically used with compatible JAE receptacles and fine coaxial cables designed for high-speed signal transmission. Its compact design and robust construction make it ideal for applications requiring reliable performance in demanding environments. The housing material is often a high-temperature thermoplastic to withstand soldering processes. Current rating and voltage ratings are specific to the cable used and application.
