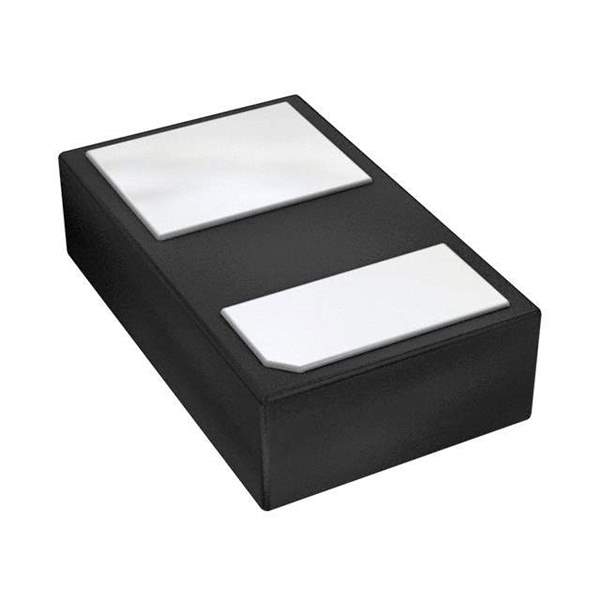

The SDM05U20CSP-7 is a high-performance Schottky diode from Diodes Incorporated, designed for applications requiring efficient and fast switching. This diode is part of the company's expansive range of semiconductor products, known for their reliability and cutting-edge technology.

Key Features

• Low Forward Voltage Drop: The SDM05U20CSP-7 boasts a low forward voltage drop, which enhances its efficiency in operation, leading to reduced power loss and improved system reliability.
• High Current Capability: With its ability to handle high current, this diode is suitable for high-density circuit designs where space is at a premium and high performance is a necessity.
• Fast Switching Speed: The device offers fast switching speed, making it ideal for high-frequency applications and those requiring rapid switching characteristics.
• Surface Mount Package: Encased in a CSP (Chip Scale Package), the SDM05U20CSP-7 is optimized for surface mounting, which allows for a more compact and efficient PCB layout.
• Low Thermal Resistance: The thermal design of the diode ensures low thermal resistance, providing better heat dissipation and contributing to the overall lifespan and reliability of the device.
• Lead-Free and RoHS Compliant: This product is manufactured using environmentally friendly materials, meeting the requirements for RoHS compliance and ensuring its suitability for use in green products.

Applications

The SDM05U20CSP-7 is versatile and can be used in a variety of applications, including:

• DC-DC Converters
• Power Supply Management
• Automotive Circuits
• Backlighting for LED/LCD Displays
• Portable Devices and Battery-Powered Systems
• High-Frequency Inverters

Conclusion

In summary, the SDM05U20CSP-7 from Diodes Incorporated is a robust and efficient solution for designers looking to optimize their power management systems. With its low forward voltage drop, high current capability, and fast switching speeds, this Schottky diode is well-suited for a wide range of high-performance applications. Its surface mount design and compliance with environmental standards further enhance its appeal in today's eco-conscious electronic market.
