Overview of DMP3099L-7 P-Channel MOSFET

The DMP3099L-7 is a high-performance P-Channel enhancement mode MOSFET from Diodes Incorporated, designed for power management applications. It is a reliable and efficient semiconductor device that operates as a switch or amplifier in electronic circuits.

Key Features

• Low On-Resistance: The DMP3099L-7 features a very low on-resistance (R_DS(on)), which minimizes conduction losses and improves overall efficiency, making it suitable for power-intensive applications.
• High Threshold Voltage: With a higher threshold voltage, the MOSFET ensures a robust performance by preventing unintentional turn-ons, which could lead to circuit damage.

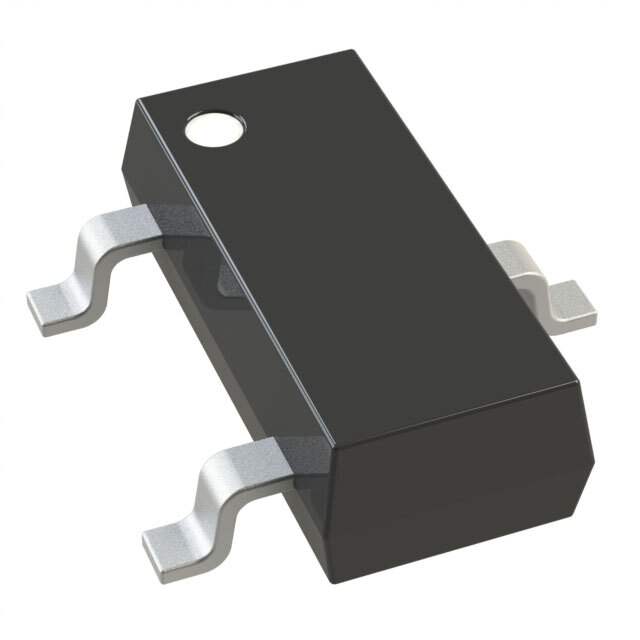

• Advanced Packaging: Encased in a RoHS-compliant SOT-23 package, the DMP3099L-7 offers a compact footprint and excellent thermal performance for space-constrained applications.
• Drain-Source Voltage: It supports a drain-source voltage (V_DSS) of -30V, providing a good margin for a variety of electronic designs.
• Continuous Drain Current: The device is capable of a continuous drain current (I_D) of -4.1A at 25°C, allowing it to handle significant power for its size.

Applications

The DMP3099L-7 is versatile and can be used in a range of applications, including:

• Power management circuits
• Load switches
• Battery management systems
• DC-DC converters
• Motor control circuits

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the DMP3099L-7 is no exception. It is manufactured to high standards, ensuring reliability and performance consistency. This MOSFET is also supported by comprehensive technical documentation, making it easier for engineers to integrate it into their designs.

Conclusion

For designers looking for a P-Channel MOSFET that offers a balance of power efficiency, compact packaging, and robust performance, the DMP3099L-7 from Diodes Incorporated is an excellent choice. Its features make it adaptable to a wide array of power management tasks, ensuring both functionality and reliability.
