Product Overview: ADUM2402ARWZ-RL

The ADUM2402ARWZ-RL from Analog Devices Inc. is a high-performance, quad-channel digital isolator that employs iCoupler® technology to achieve superior isolation capabilities. Designed to provide robust electromagnetic compatibility (EMC) and safety, this component is an ideal choice for a wide range of applications requiring reliable signal isolation, such as industrial automation, medical devices, and power supply systems.

Key Features

• High Data Rates: Supports data rates up to 25 Mbps, ensuring fast and efficient communication for time-sensitive applications.
• Quad-Channel Isolation: Features four independent isolation channels, each capable of transferring data in either direction, providing design flexibility and reducing component count.
• Robust Isolation: Offers an isolation voltage of 2500 Vrms for 60 seconds, making it suitable for high-voltage environments and safety-critical applications.
• Low Power Consumption: Operates with low power consumption, making it an energy-efficient choice for portable and power-sensitive applications.
• Wide Temperature Range: Functions across an extended industrial temperature range from -40°C to +125°C, ensuring reliable performance under harsh conditions.

Advanced Technologies

The ADUM2402ARWZ-RL incorporates Analog Devices' proprietary iCoupler technology, which combines high-speed CMOS and monolithic air-core transformer technology to provide outstanding performance and reliability. This technology eliminates the need for traditional optocouplers, offering improved speed, reduced power consumption, and increased integration.

Package and Quality

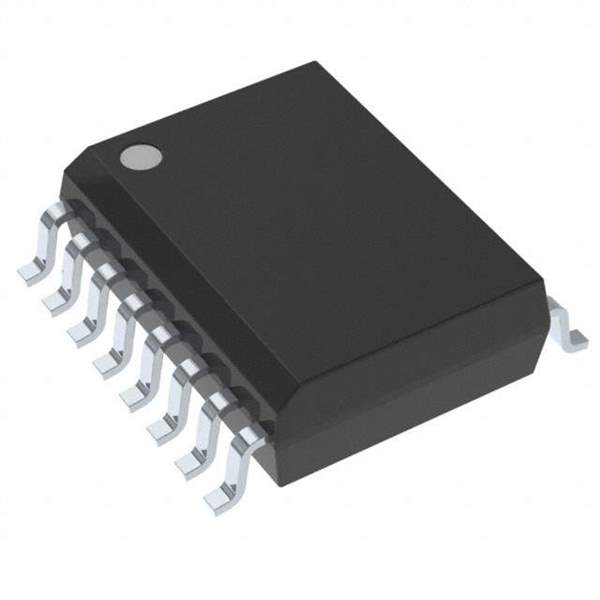

Encased in a 16-lead SOIC wide-body package, the ADUM2402ARWZ-RL is designed for optimal board space utilization. Its RoHS-compliant design adheres to environmental standards, minimizing the ecological footprint. With a commitment to quality, Analog Devices ensures that this isolator meets stringent industry certifications, providing engineers with a trusted solution for their isolation needs.

Applications

Thanks to its robust features and reliable performance, the ADUM2402ARWZ-RL is suited for a variety of applications, including:

• Industrial field buses
• General-purpose multichannel isolation
• Data acquisition systems
• Medical equipment with stringent safety requirements
• Power supply and converter isolation

With the ADUM2402ARWZ-RL, Analog Devices Inc. continues to lead in the field of signal isolation, providing components that enhance the safety, efficiency, and reliability of electronic systems worldwide.
