STMicroelectronics LM339DT - Quad Differential Comparator
The LM339DT from STMicroelectronics is a precision quad differential comparator which is designed to operate over a wide range of supply voltages, from single supply at 2 volts to dual supplies up to ±18 volts. This versatile device is specifically engineered to provide a multitude of comparators in a single package, making it ideal for space-constrained applications requiring multiple comparing elements.
The LM339DT features four independent voltage comparators that can operate at low power, making it suitable for battery-operated devices. The comparators are designed to directly interface with TTL and CMOS. When connected to these logic types, the output of the LM339DT can switch voltages to the correct logic level, ensuring seamless integration with digital circuits.
This component is characterized by its low input bias current, which minimizes the effect on the circuits being monitored. It also has a low input offset voltage, which contributes to accurate comparator actions even at low voltage differences. The LM339DT can operate in a wide temperature range, ensuring reliability and performance consistency across various environmental conditions.

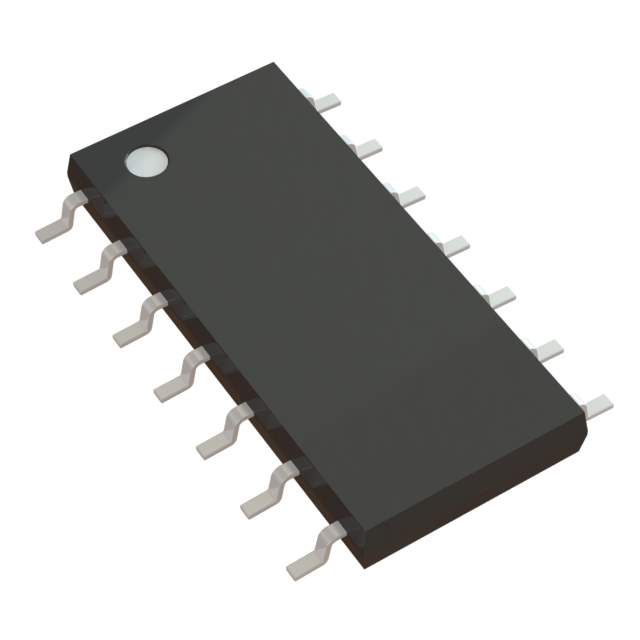

The device is packaged in a small outline package (SOIC-14), which is a surface-mountable design that saves space on printed circuit boards. This package type also aids in efficient thermal dissipation and offers robustness for industrial and commercial applications. The LM339DT is commonly used in level shifters, analog-to-digital converters, battery chargers, and general-purpose comparator applications where precision and reliability are paramount.
Overall, the LM339DT from STMicroelectronics is a reliable and versatile solution for designing electronic circuits that require multiple comparators. Its low power consumption, wide voltage range compatibility, and precision make it an excellent choice for designers aiming to create efficient and high-performance electronic products.
