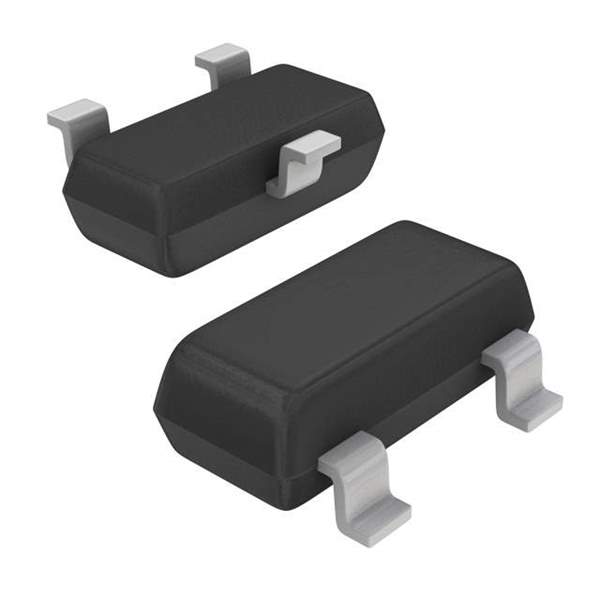

NSVMMUN2112LT1G

Teil Nr. NSVMMUN2112LT1G
Hersteller ON Semiconductor
Katalog RF Transistors (BJT)
Beschreibung TRANS PREBIAS PNP 0.246W SOT23 / Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 246 mW Surface Mount SOT-23-3 (TO-236)
Datenblatt
Muster
Rohs-status rohs
ECAD-module
Brauchen Sie Hilfe

Spezifikationen der Produkte Problem melden?

Kategorie Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single, Pre-Biased
Mfr onsemi
Paket Tape & Reel
Transistor Typ PNP - Pre-Biased
Strom - Kollektor (Ic) (Max) 100 mA
Spannung - Kollektor-Emitter-Durchbruch (Max) 50 V
Widerstand - Basis (R1) 22 kOhms
Widerstand - Emitterbasis (R2) 22 kOhms
DC-Stromverstärkung (hFE) (Min) @ Ic, Vce 60 @ 5mA, 10V
Vce Sättigung (Max) @ Ib, Ic 250mV @ 300µA, 10mA
Strom - Kollektorabschaltung (Max) 500nA
Leistung - Max 246 mW
Montage SMD (SMT)
Verpackung / Koffer TO-236-3, SC-59, SOT-23-3
Lieferant Gerätepaket SOT-23-3 (TO-236)
Basis-Produktnummer NSVMMUN2112
MSL-Stufe 1 (Unlimited)
REACH-Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Andere Namen NSVMMUN2112LT1GOSTR,NSVMMUN2112LT1G-ND,NSVMMUN2112LT1GOSCT,NSVMMUN2112LT1GOSDKR
Standard-Paket 3,000
Win Source Teilenummer 1014176-NSVMMUN2112LT1G
Gefälschte Bedrohung auf dem freien Markt 85 pct.
Ultra Librarian 3D-Modell Ultra Librarian NSVMMUN2112LT1G CAD-Modell

Beschreibung

NSVMMUN2112LT1G from ON Semiconductor is an RF transistor (BJT) intended for designers who need a compact transistor solution for signal handling, switching, and RF-related circuit support functions in space-constrained electronics. Parts in this category are commonly considered for portable devices, communication modules, control boards, and general small-signal designs where consistent sourcing and compliance visibility matter alongside electrical performance. For engineering teams, this component can be relevant in both new development reviews and sustaining applications, especially when evaluating approved vendor lists and procurement continuity. The current lifecycle status is information not available, so design and sourcing teams should confirm manufacturer status before committing to long-term production. RoHS compliance information is also not available from the provided input and should be verified through the latest datasheet, manufacturer declarations, or authorized distribution channels. This makes NSVMMUN2112LT1G best approached with a verification-first sourcing strategy in regulated or lifecycle-sensitive programs.
