Overview of Diodes Incorporated SBR1U40LP-7

The SBR1U40LP-7 is a state-of-the-art Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to offer superior performance in a compact, low-profile package. This rectifier is an ideal choice for high-efficiency power management applications where space is at a premium and reliability is of paramount importance.

Key Features

• Low Forward Voltage Drop: The SBR1U40LP-7 boasts a very low forward voltage drop, which significantly enhances its efficiency in applications, reducing power loss and improving overall product performance.
• High Surge Current Capability: This component is capable of withstanding high surge currents, making it suitable for applications that may experience unexpected surges, thereby providing robust protection for sensitive electronic circuits.

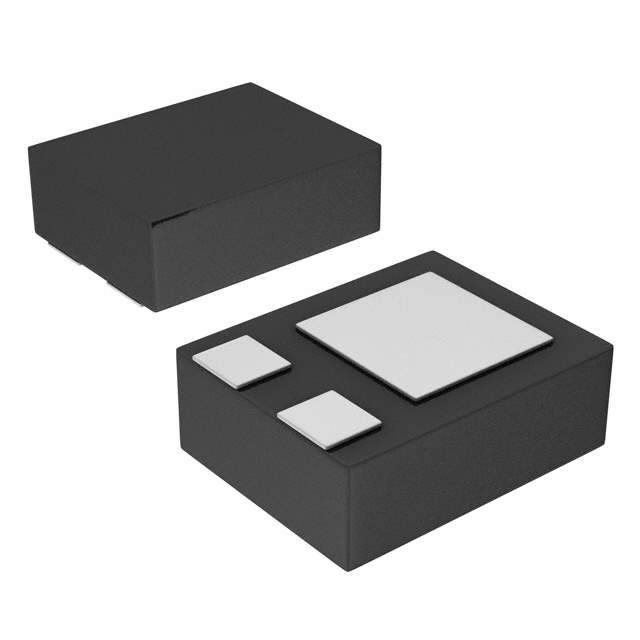

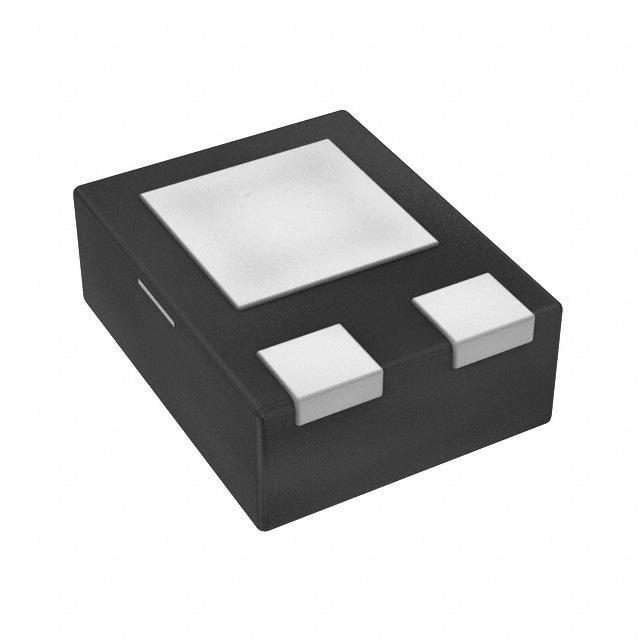

• Low Profile Package: The SBR1U40LP-7 comes in a PowerDI™123 package, which is known for its small footprint and low profile, making it an excellent choice for compact designs where space-saving is crucial.
• PowerDI™123 Package: Optimized for thermal performance, the PowerDI™123 package ensures that the device operates within its temperature specifications, even under high power or high ambient temperature conditions.

Applications

The versatility of the SBR1U40LP-7 allows it to be used in a wide range of applications. These include, but are not limited to:

• DC/DC converters
• Power supplies
• LED lighting
• Battery charging circuits
• Reverse polarity protection
• Load switching

Reliability and Compliance

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The SBR1U40LP-7 is no exception, as it is constructed with the robust manufacturing processes and stringent quality control measures that Diodes Incorporated is known for. Additionally, it is compliant with RoHS and Halogen-Free standards, making it suitable for use in environmentally sensitive applications.

With its combination of efficiency, power handling, and compact form factor, the SBR1U40LP-7 from Diodes Incorporated is an excellent rectifier choice for designers looking to optimize their power management solutions.
